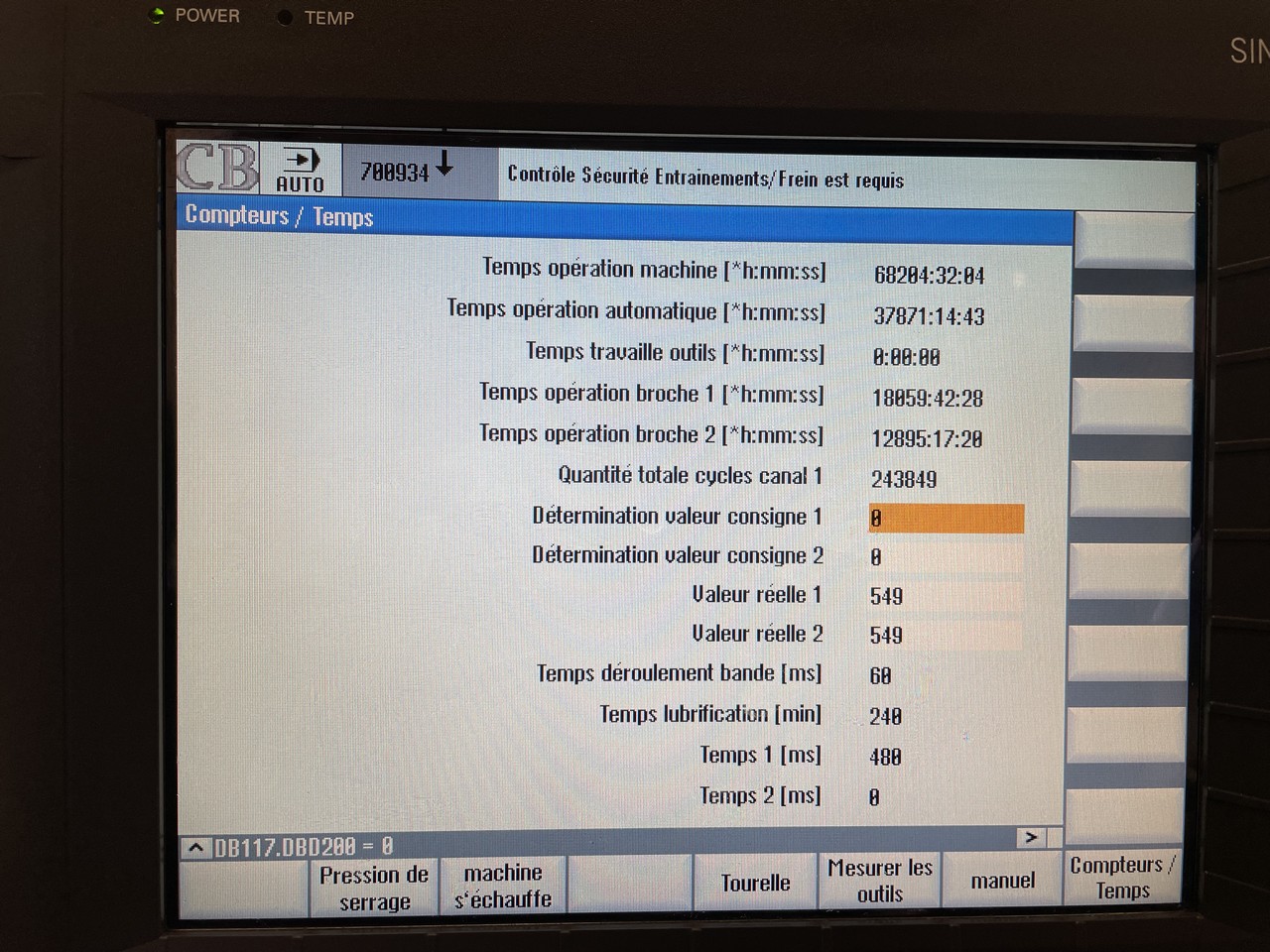

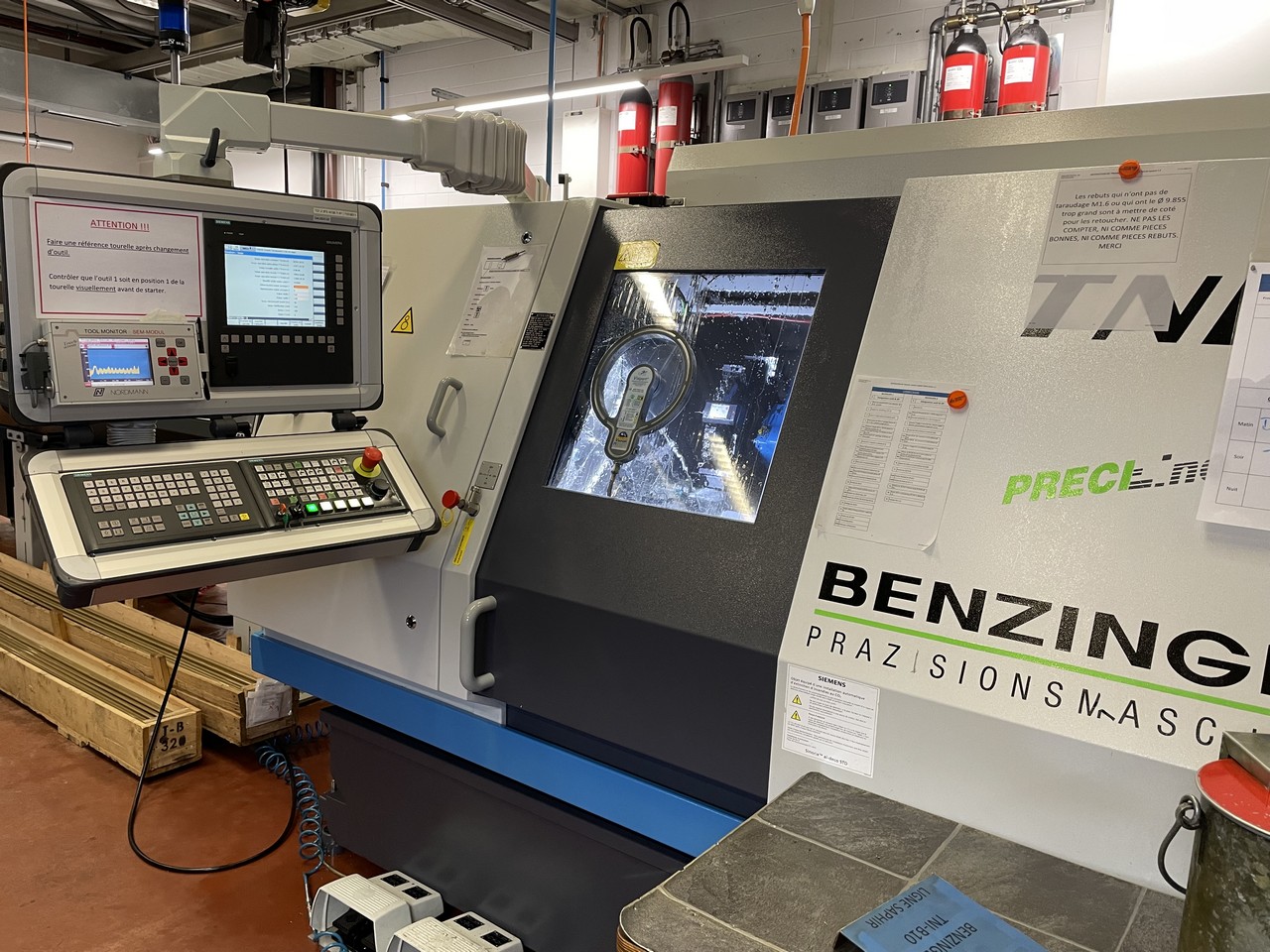

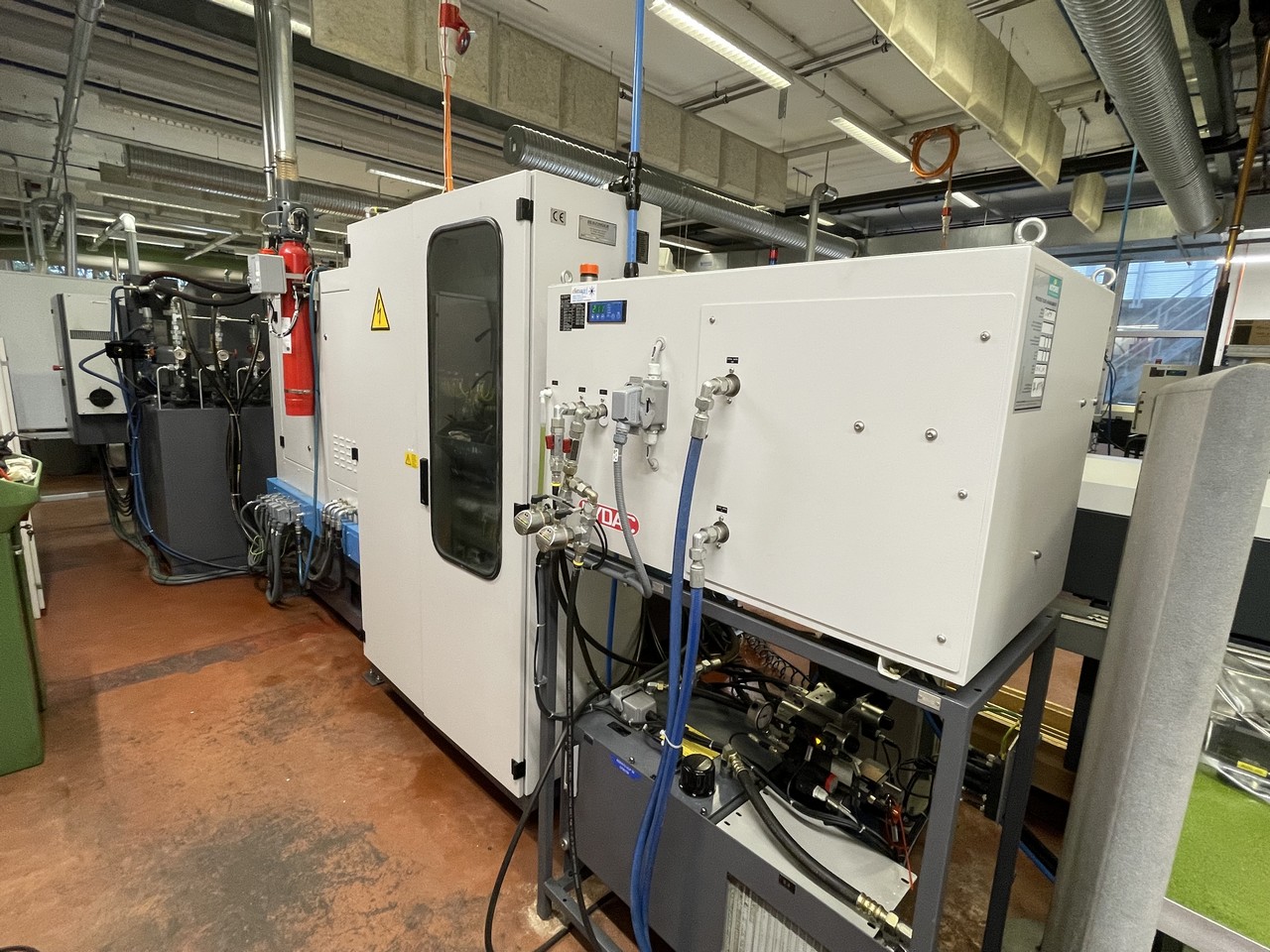

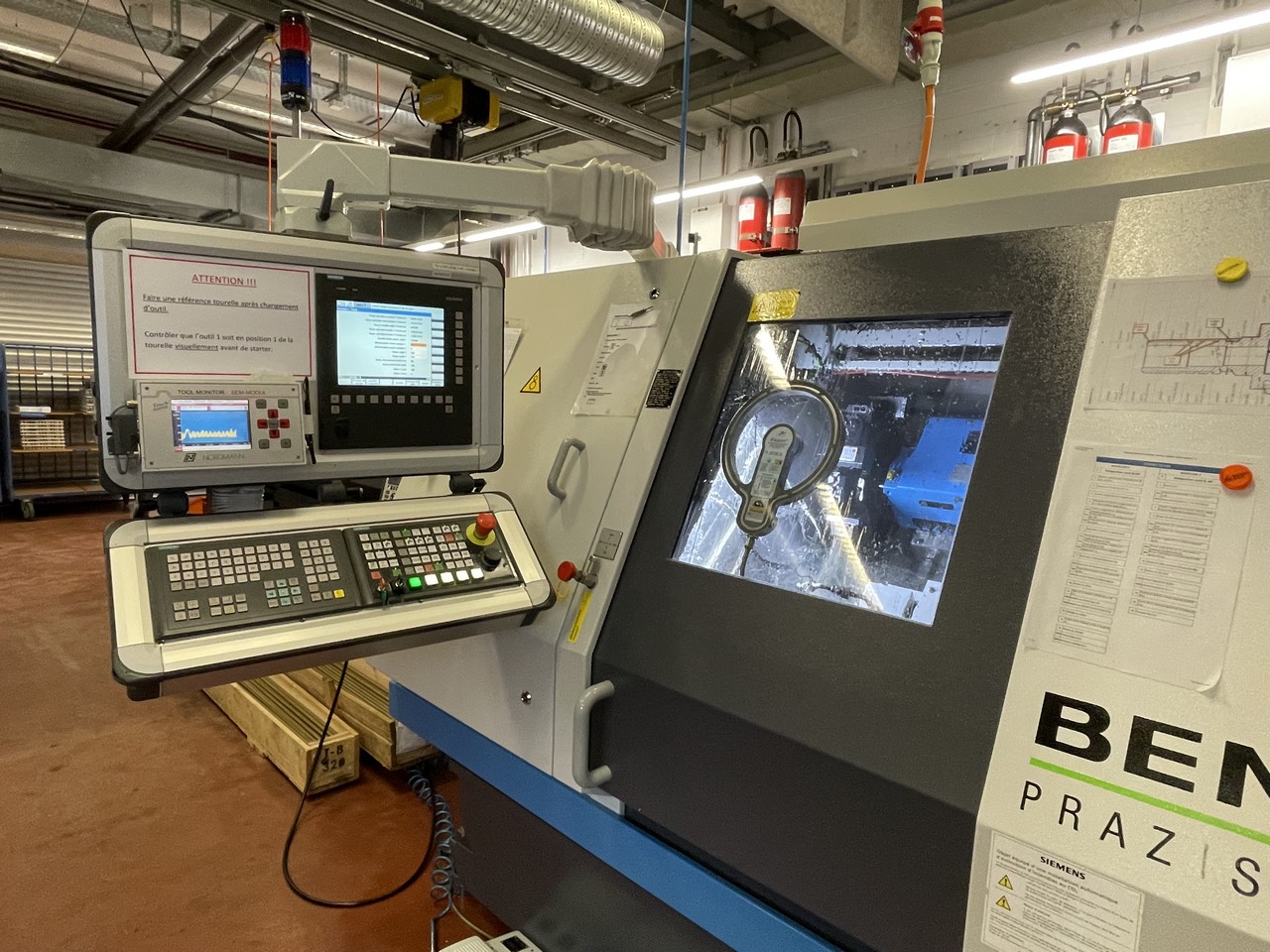

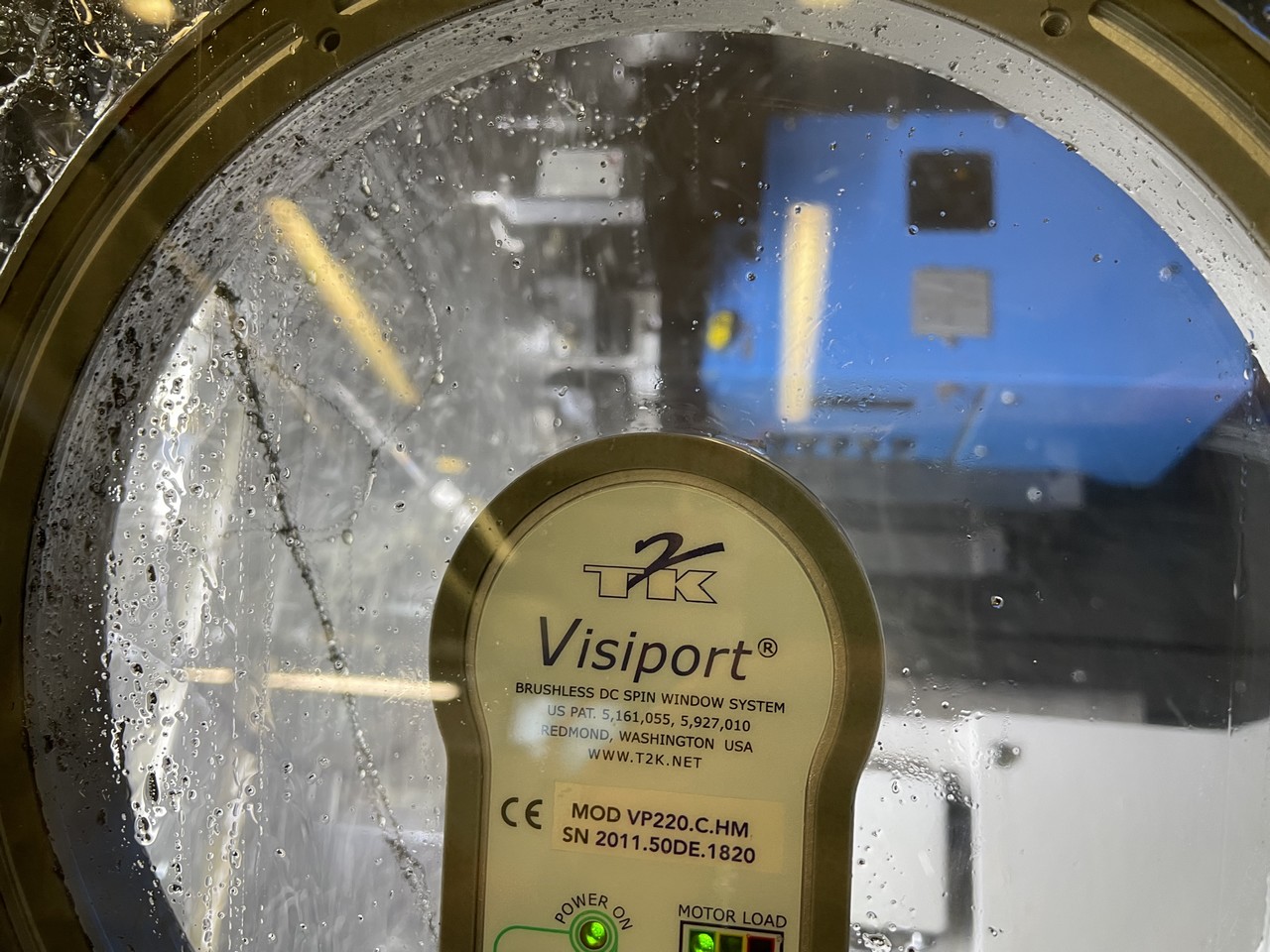

CNC TURNING MACHINE “BENZINGER” TYPE TNI-B10

Inventory no.2322002, machine equipped with :

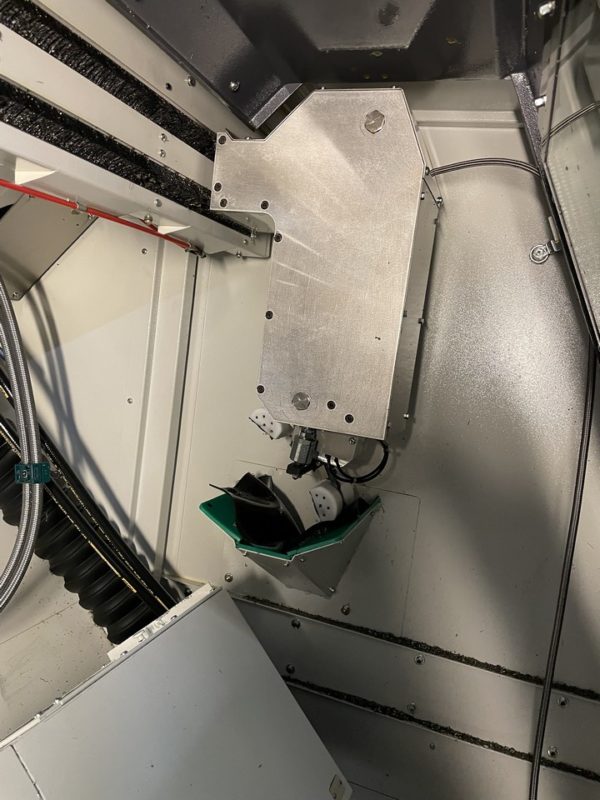

Y-axis on top turret

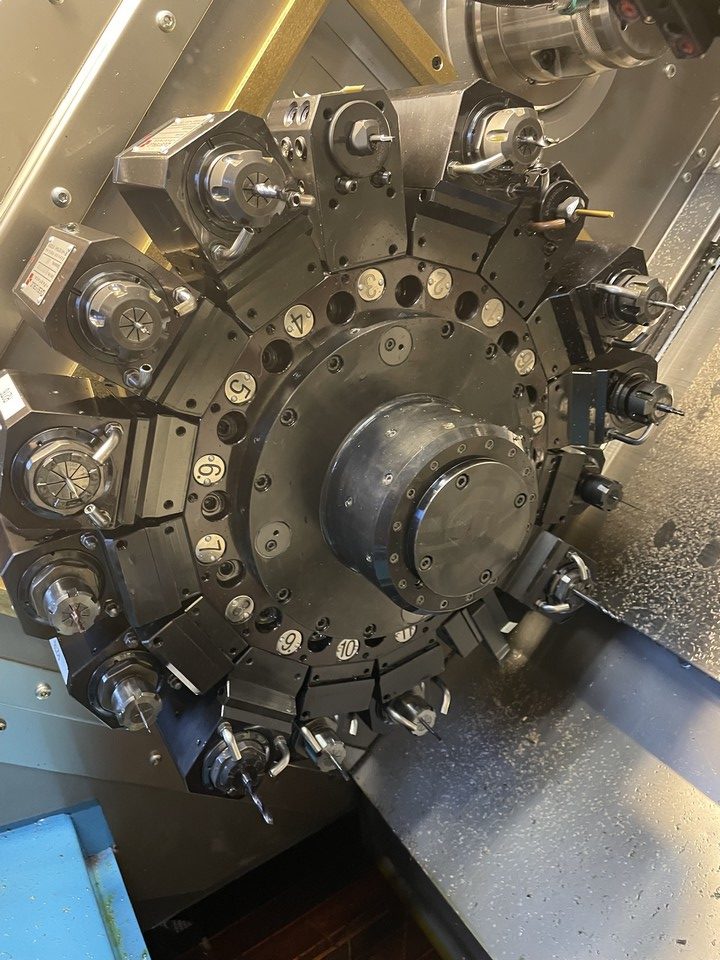

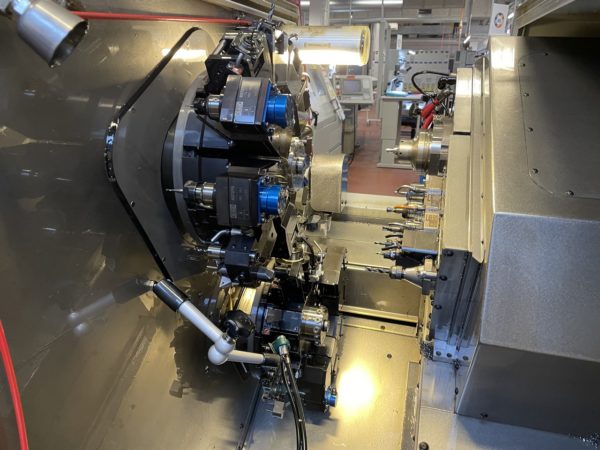

16-station turret
Counter spindle 8000 min-1

Manufacturing origin Germany
Voltage 400V/50Hz/3ph
Netweight abt.4500 kg
Custom position 8458.9120

TECHNICAL DATA
(standard)

Travel X1-axis 180 mm
Travel X2-axis 195 mm
Travel X3-axis 170 mm
Travel Z1-axis 340 mm
Travel Z2-axis 440 mm
Travel Z3-axis 180 mm
Travel Y-axis +/-40 mm (option)
Travel Y2-axis +40/-25mm (option)

Rapid feeds X/Z/Y 30/45/15 m/min
Acceleration X/Z/Y 10/10/5 m/s.
Measuring system X/Z/Y glas scale
X, yes
Z (option)
Y (option)

MAIN SPINDLE

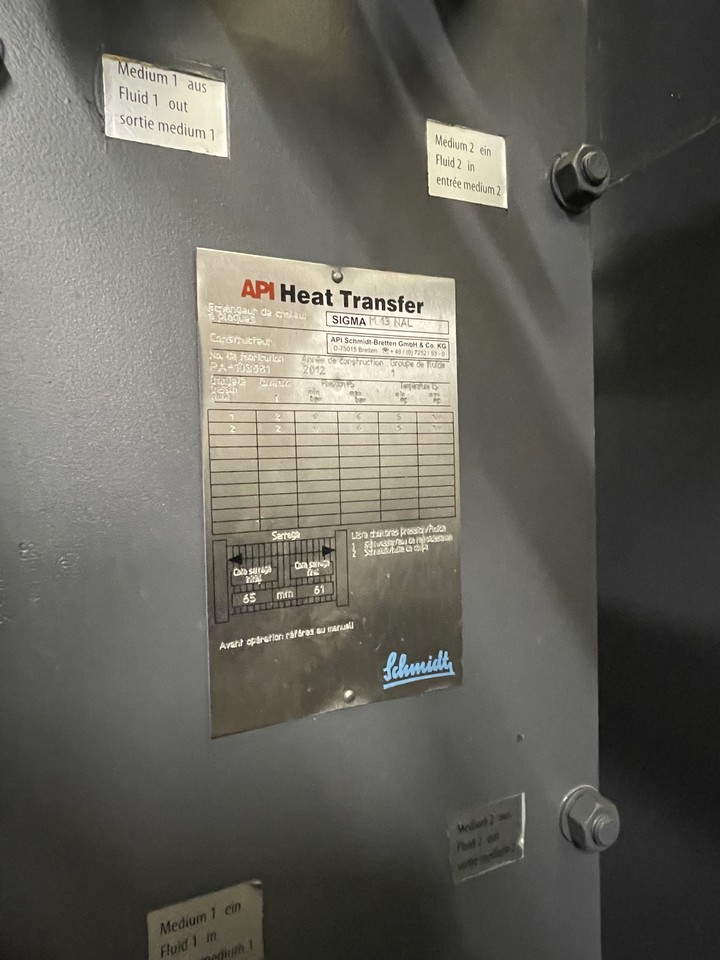

Motor spindle water cooled

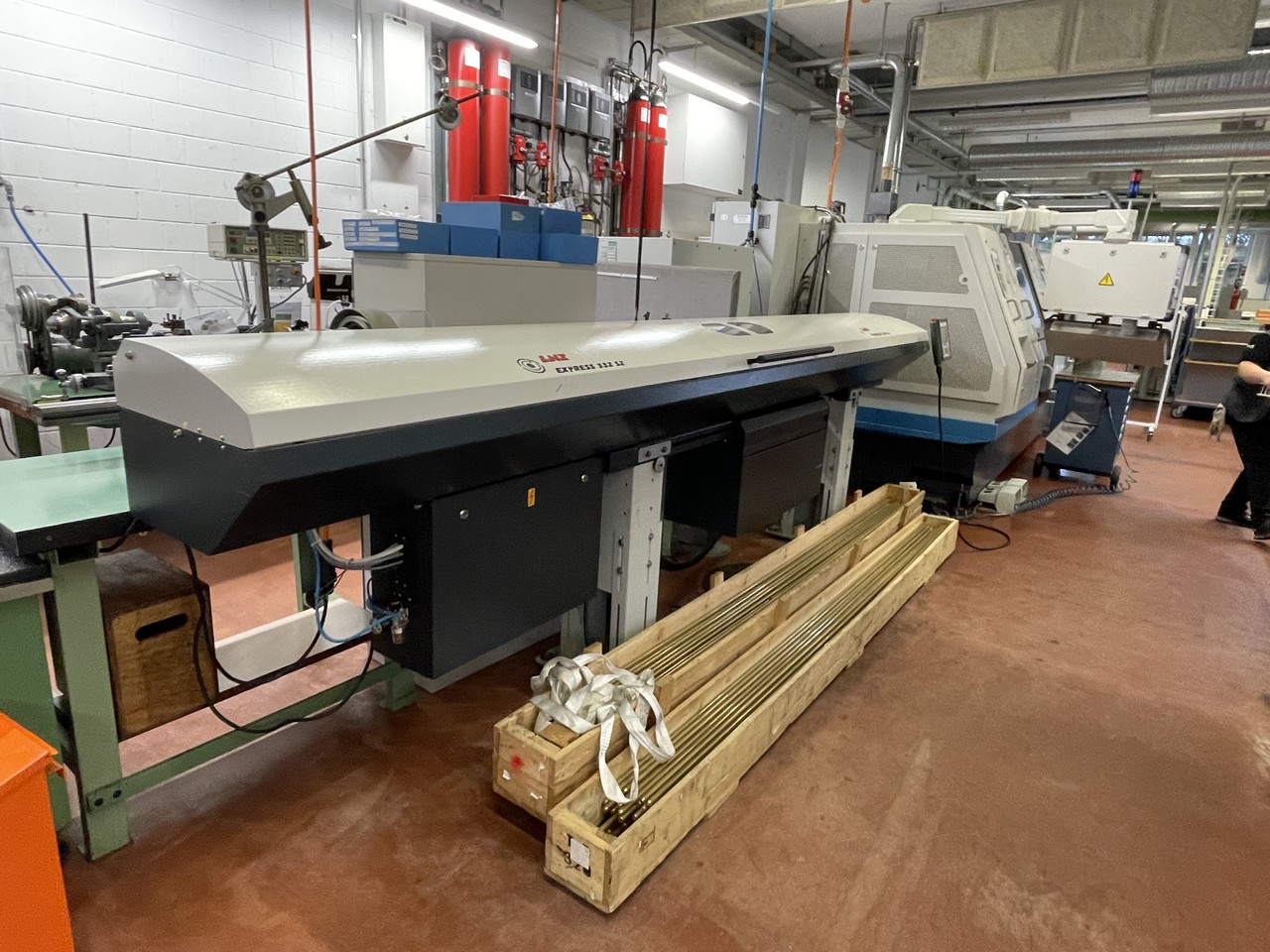

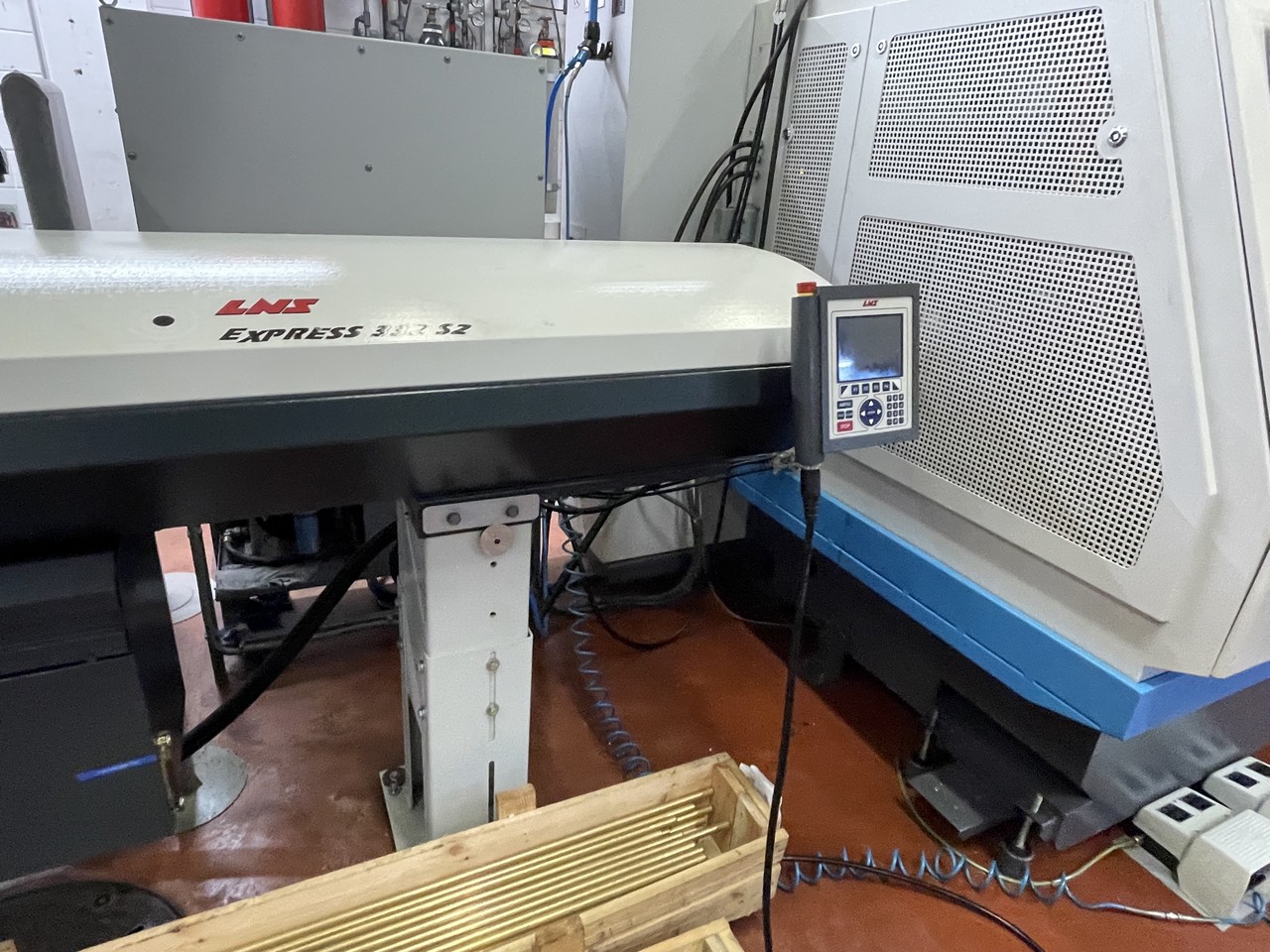

Bar capacity 32 mm (options : 16, 26 or 42 mm)
Spindle speed 6000 min-1
(option : up to 15000 min-1)
Driving power 12 kW (S1) to 15,5 kW (S1)
Spindle nose DIN 55026 A4 (range 26-42 mm)
Benzinger-Norm (range 16 mm)
C-axis resolution 0,001° (option)
Workpiece clamping pneumatic
(option : hydraulic)
(option : sensitive clamping)

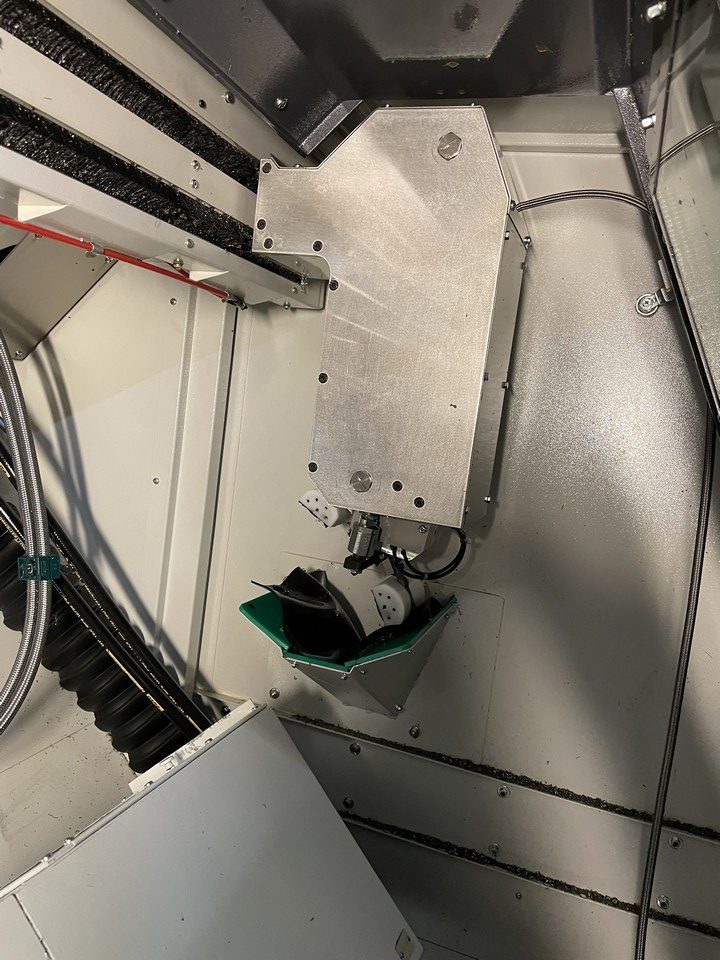

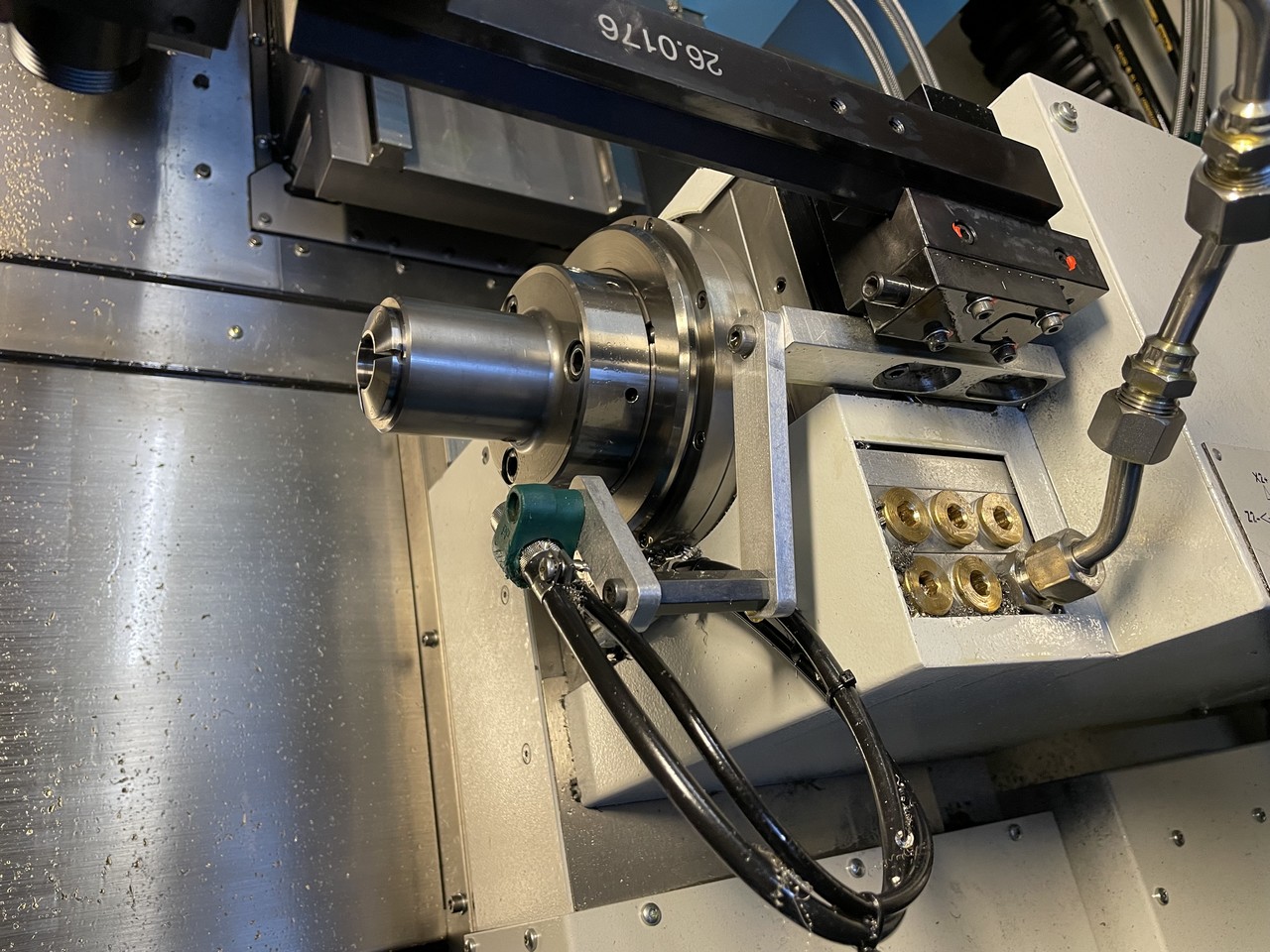

SUB-SPINDLE
Motor spindle water cooled
Bar capacity 32 mm (options : 16 mm)
Spindle speed 6000 min-1
(option : up to 15000 min-1)
Driving power 12 kW (S1) / 13 kW (S1)
Spindle nose DIN 55026 A4 (range 26 mm)
Benzinger-Norm (range 16 mm)
C-axis resolution 0,001° (option)
Workpiece clamping pneumatic
(option : hydraulic)
(option : sensitive clamping)

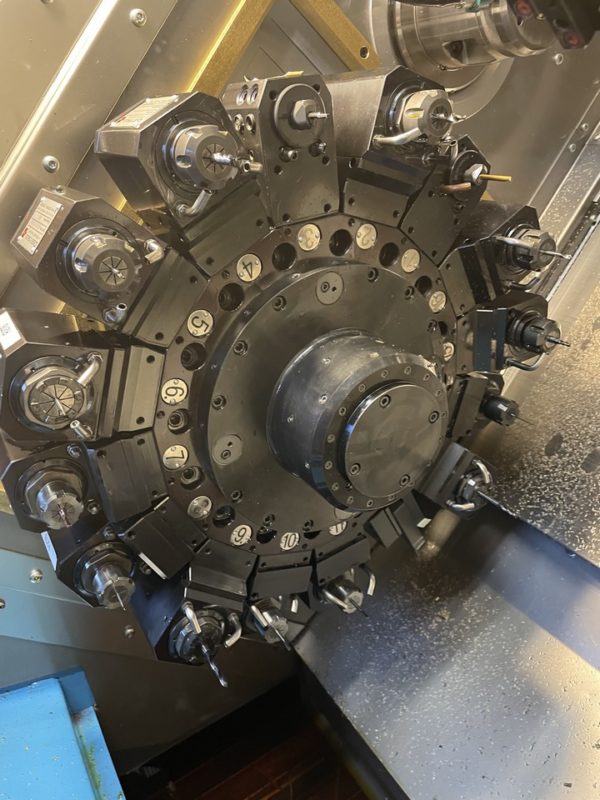

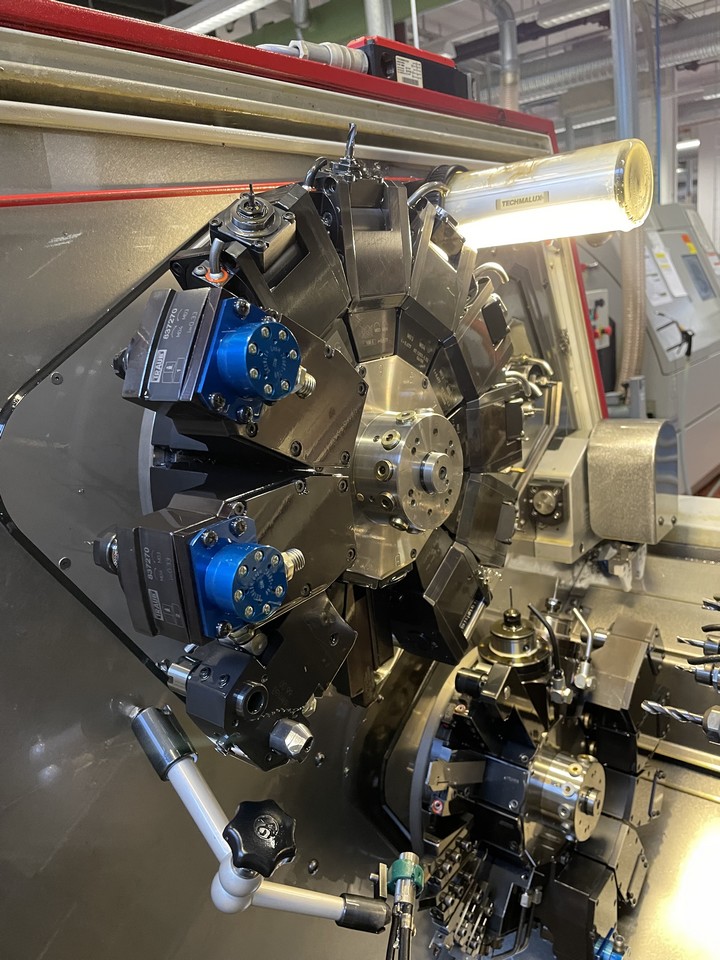

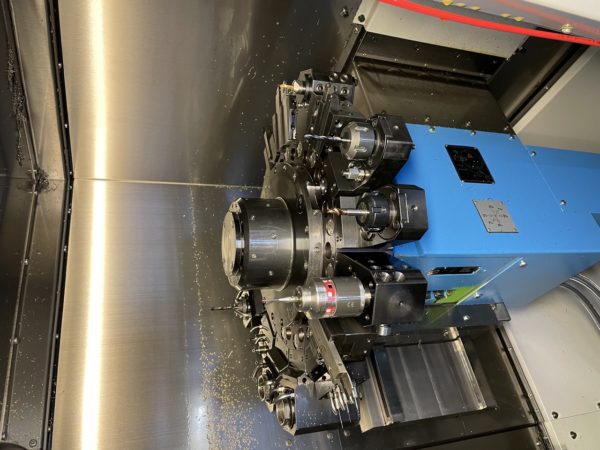

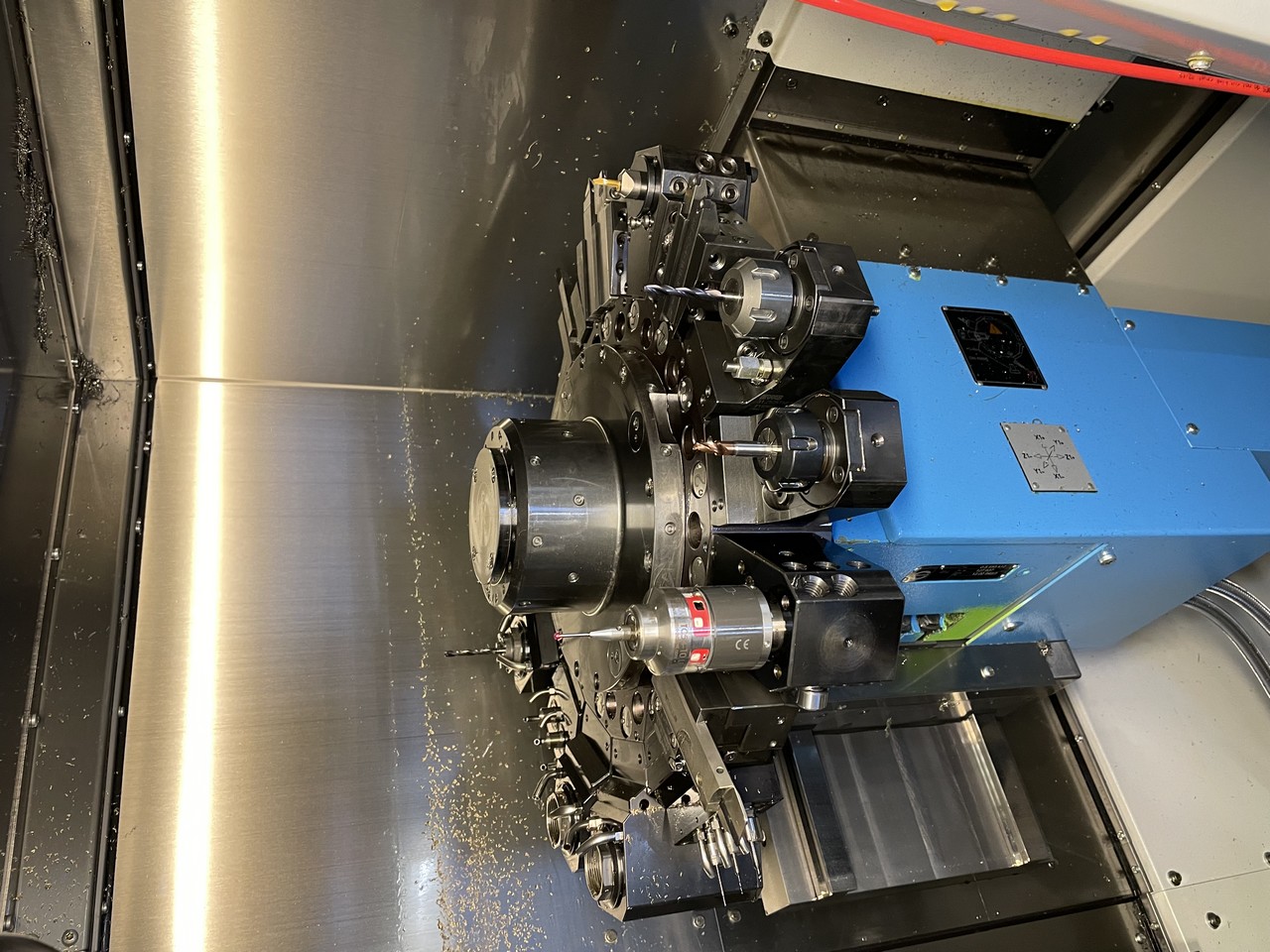

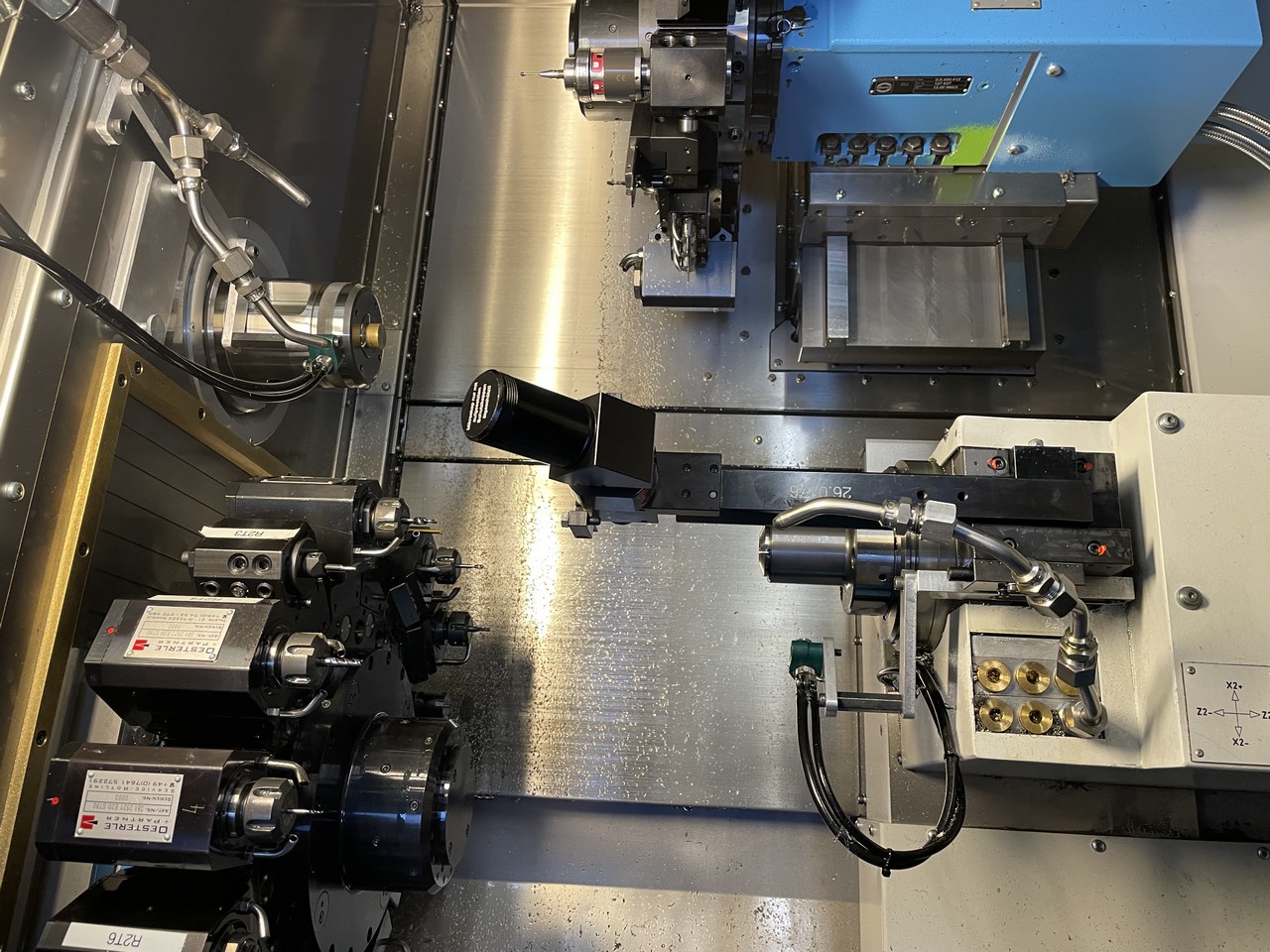

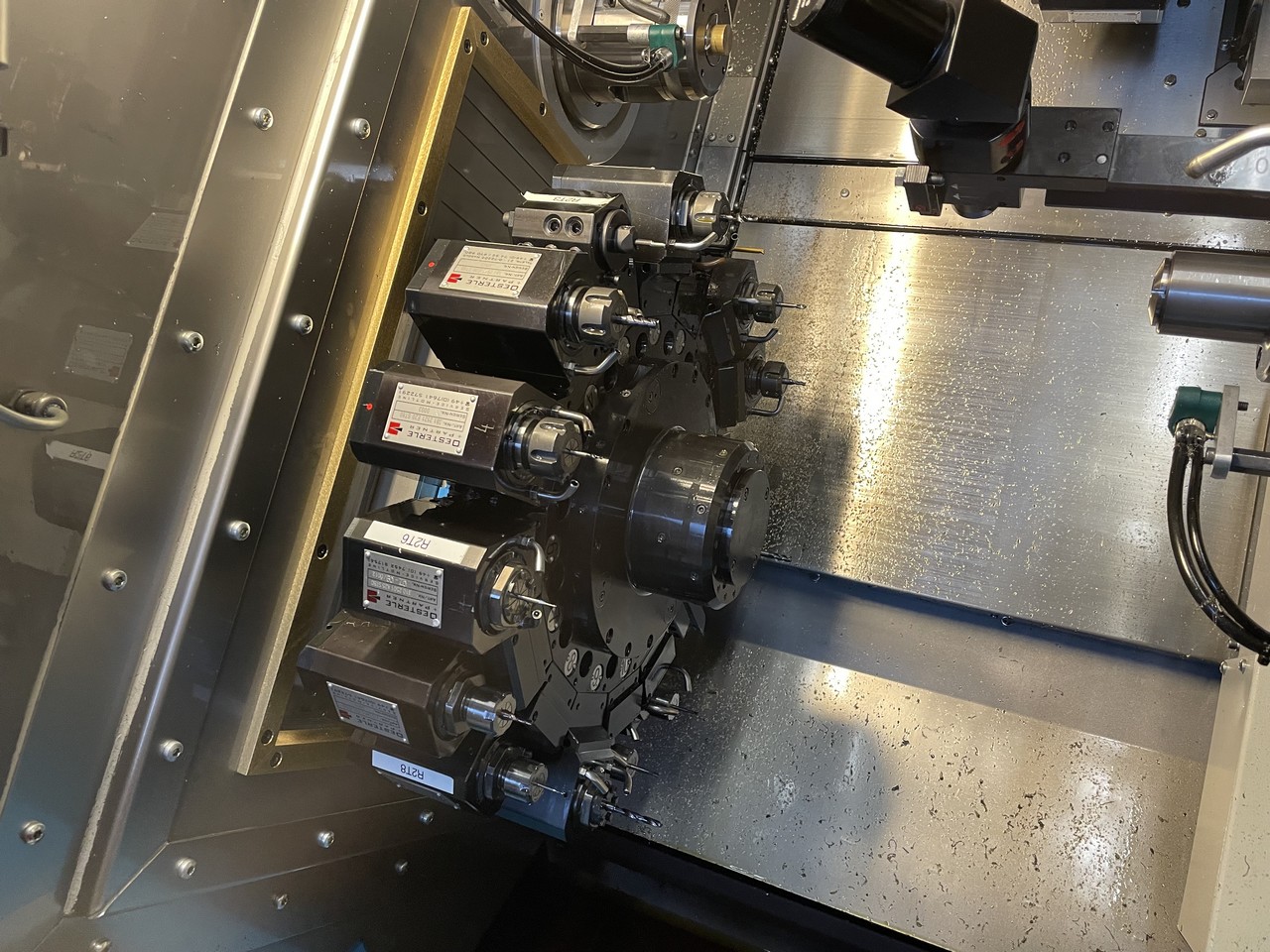

TOOL TURRET

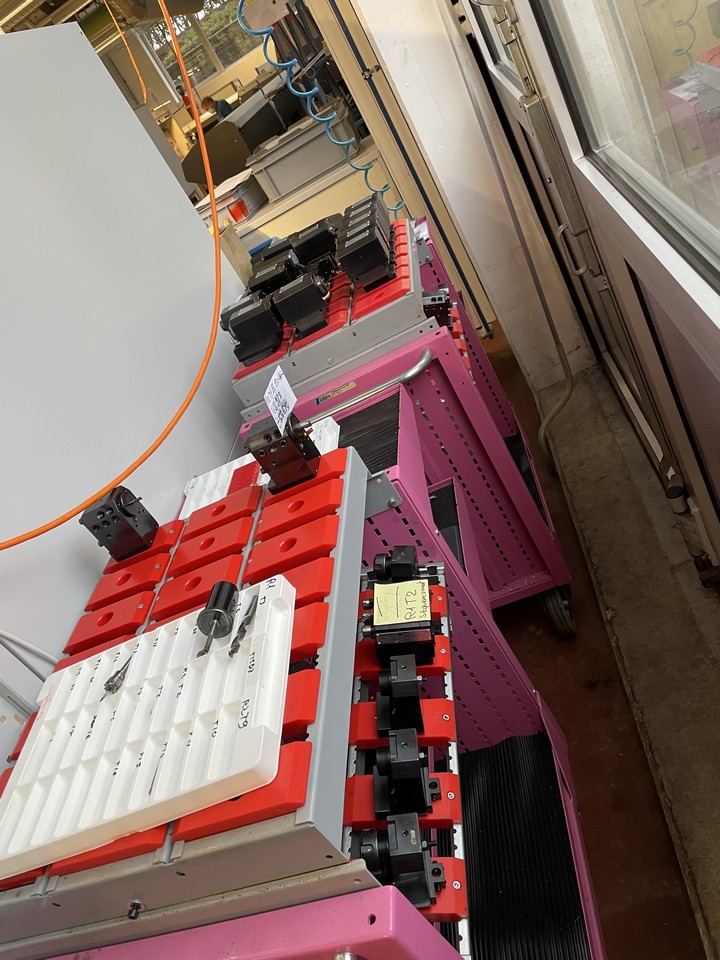

Revolver VDI 25 DIN 69880
Tool posts 12 (option : 16)
Individual drive 12 (option : 16 (6000 min-1))

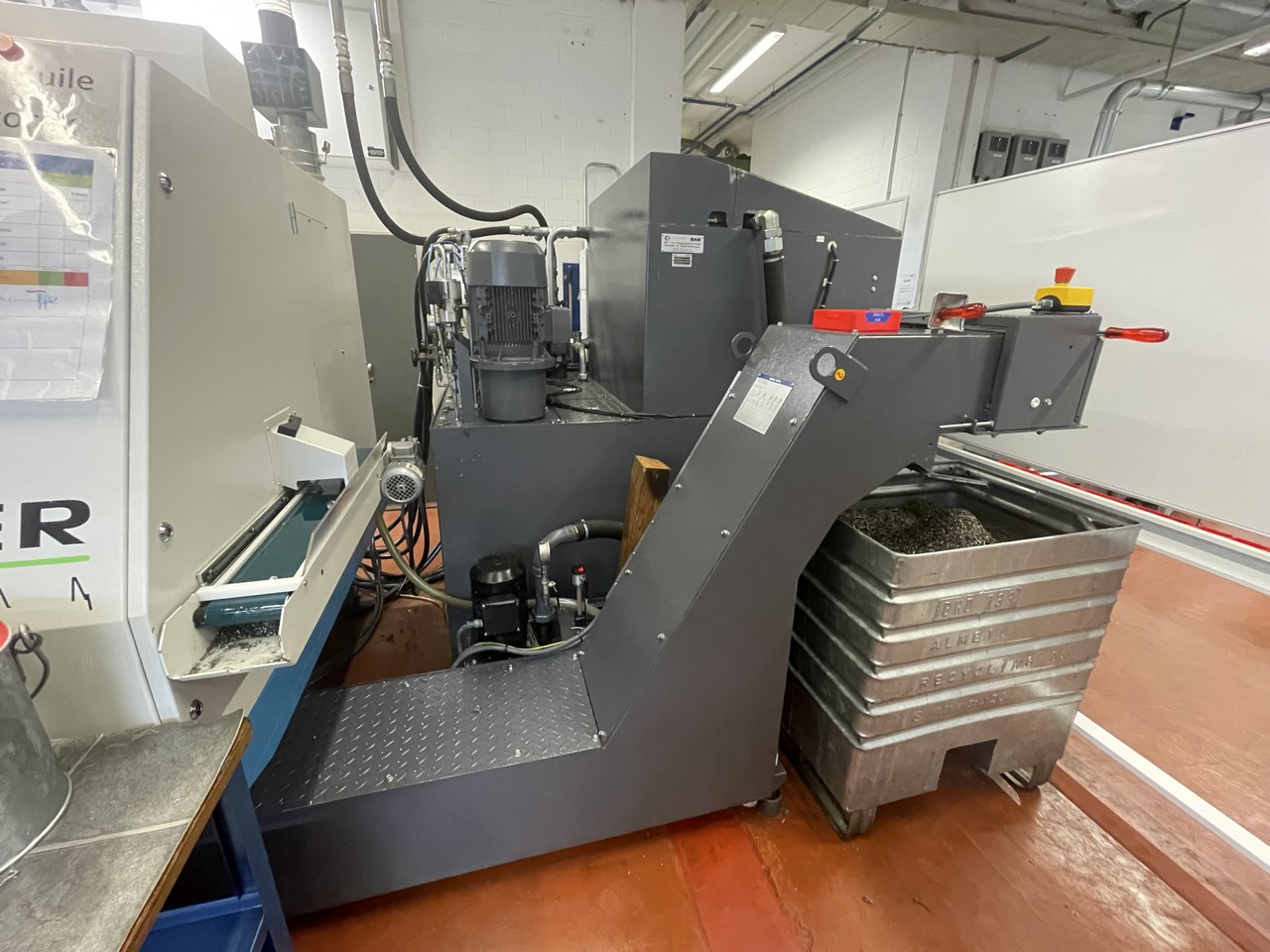

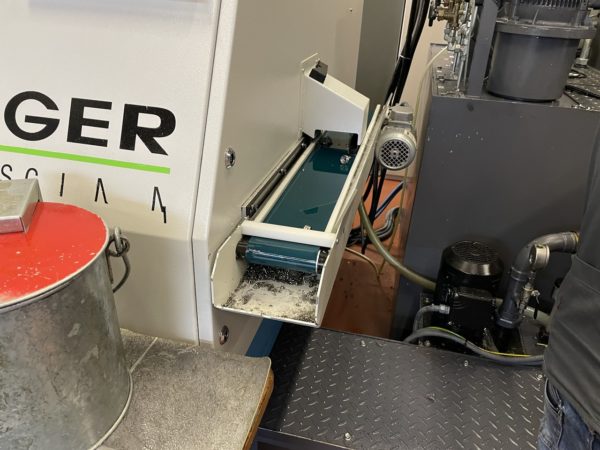

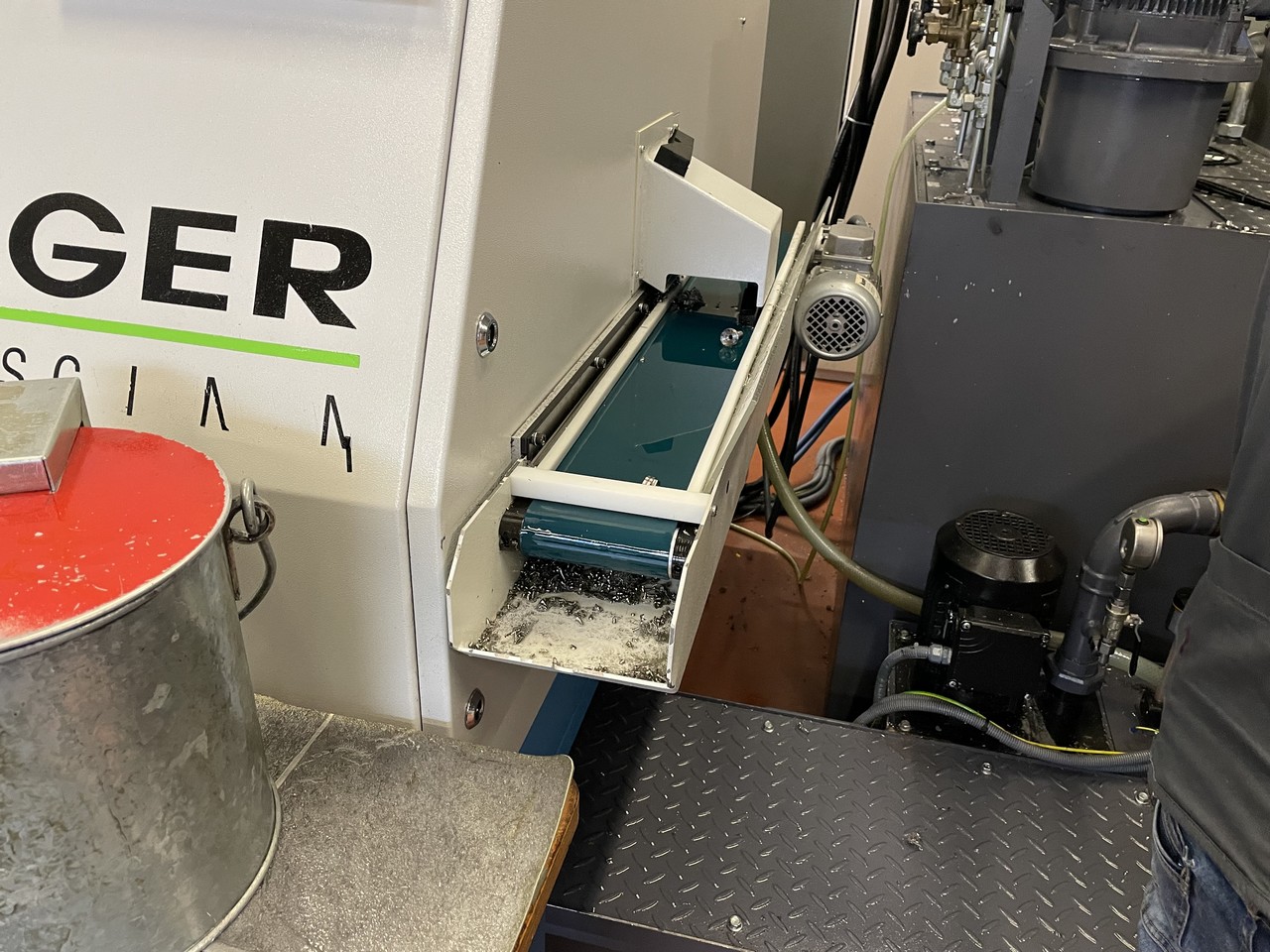

Coolant tank 160 L
Installed power : 35 KVA

errors and omissions excepted-data given without obligation
