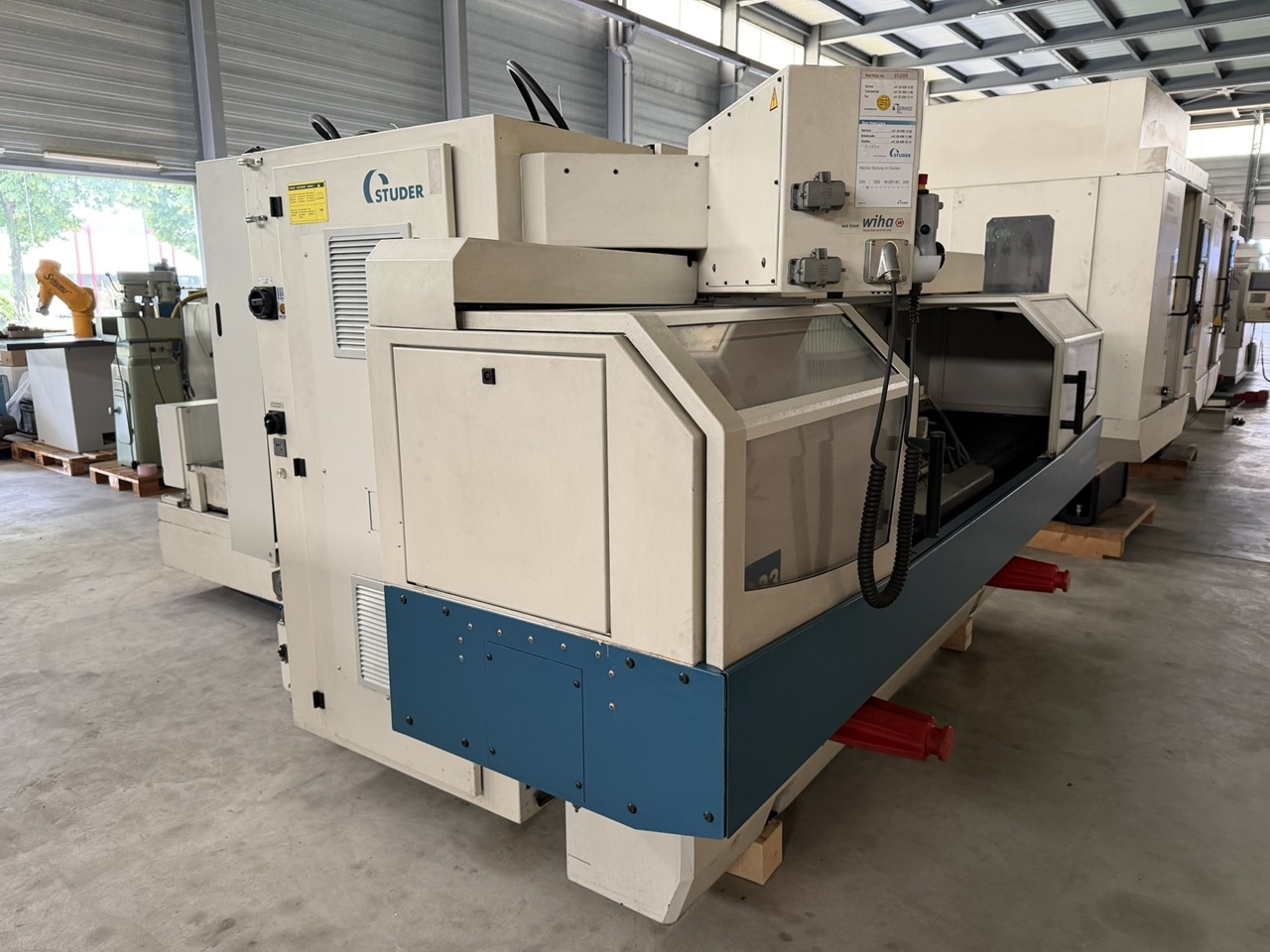

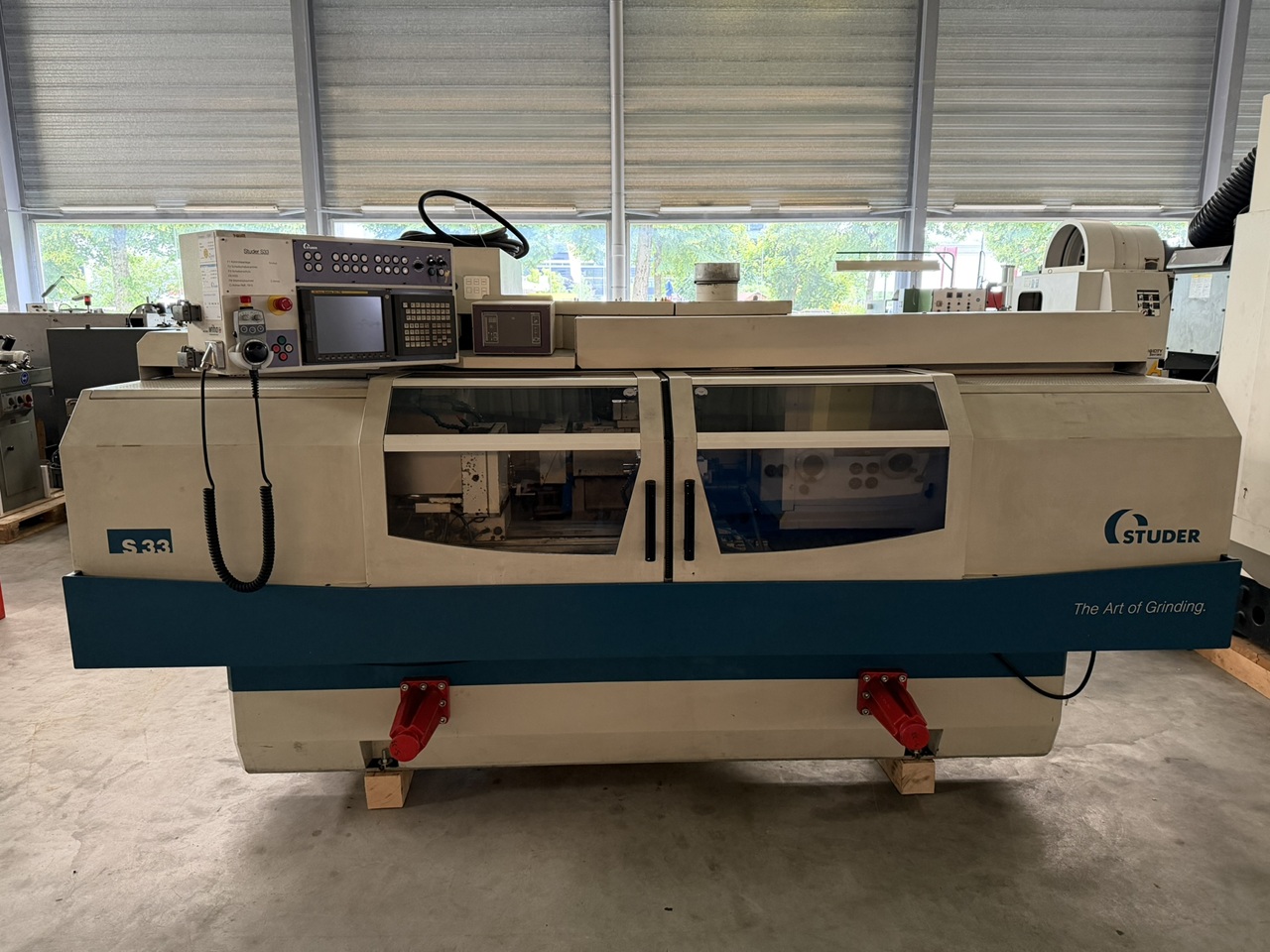

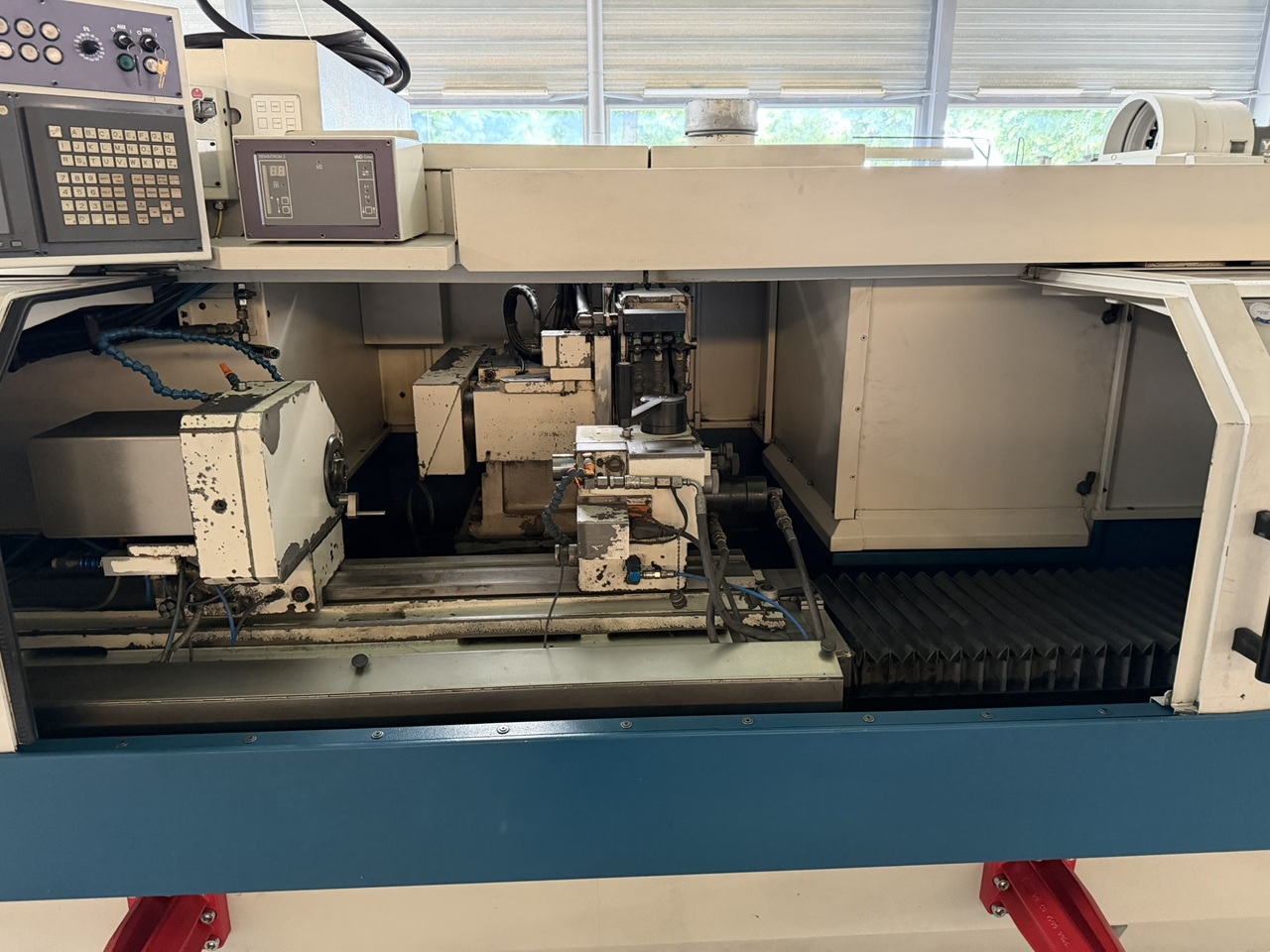

CNC CYLINDRICAL GRINDER STUDER S-33 CNC

Country of manufacture Switzerland
Voltage 380/50/3
Net weight of machine 4000 kg

TECHNICAL SPECIFICATIONS
Centre-to-centre distance 650/1000 mm
Centre height 175 mm
Max. workpiece weight 80 / 120 kg

Longitudinal slide Z
Max. stroke: 800 – 1150 mm
Speed: 0.001 to 10,000 mm/min
(model from early 2000: 0.001–5,000 mm/min)
Resolution: 0.0001 mm

Transverse slide X
Max. stroke: 285 mm
Speed 0.001 to 20,000 mm/min
(early 2000 model: 0.001–10,000 mm/min)
Resolution 0.0001 mm

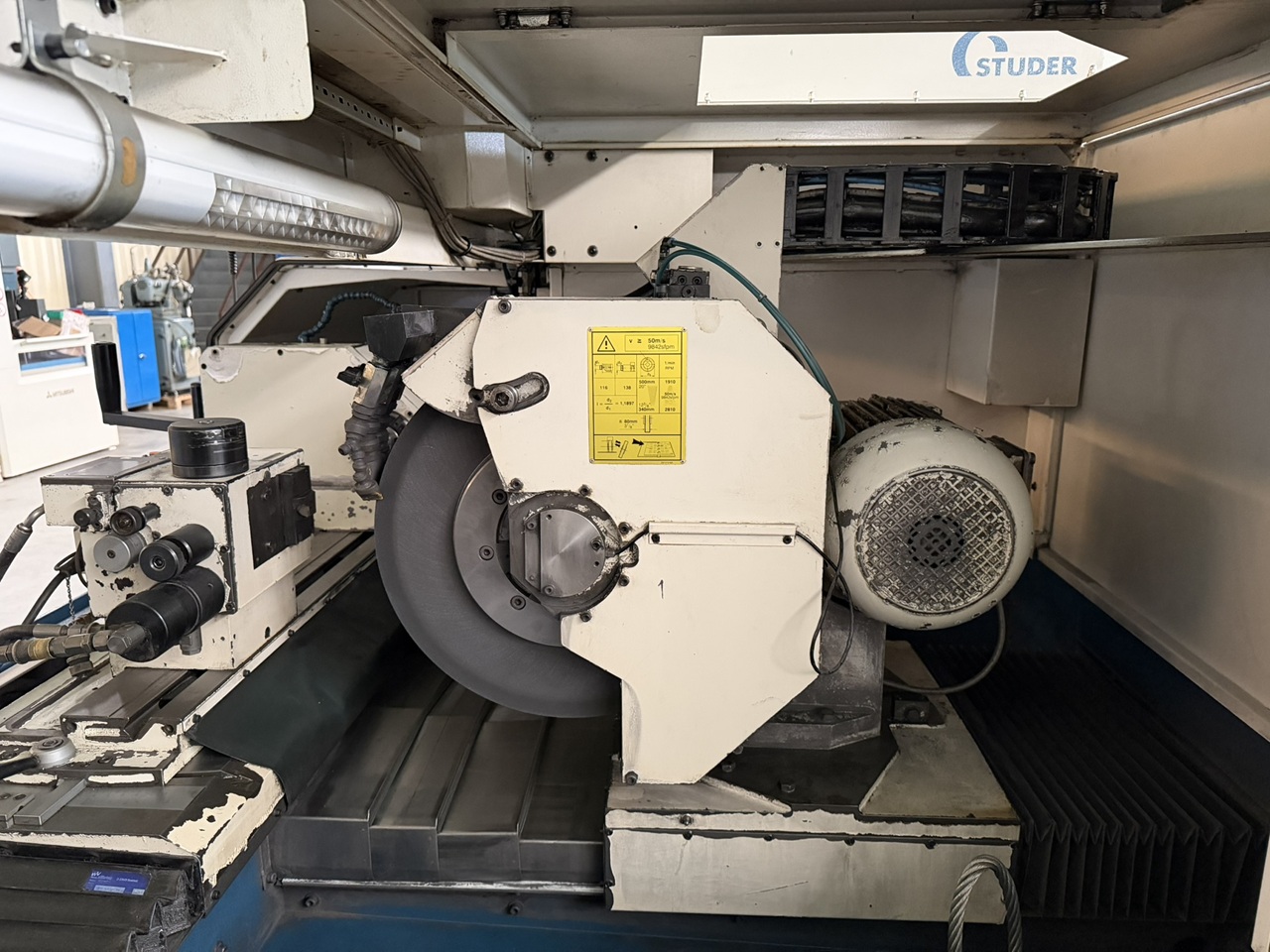

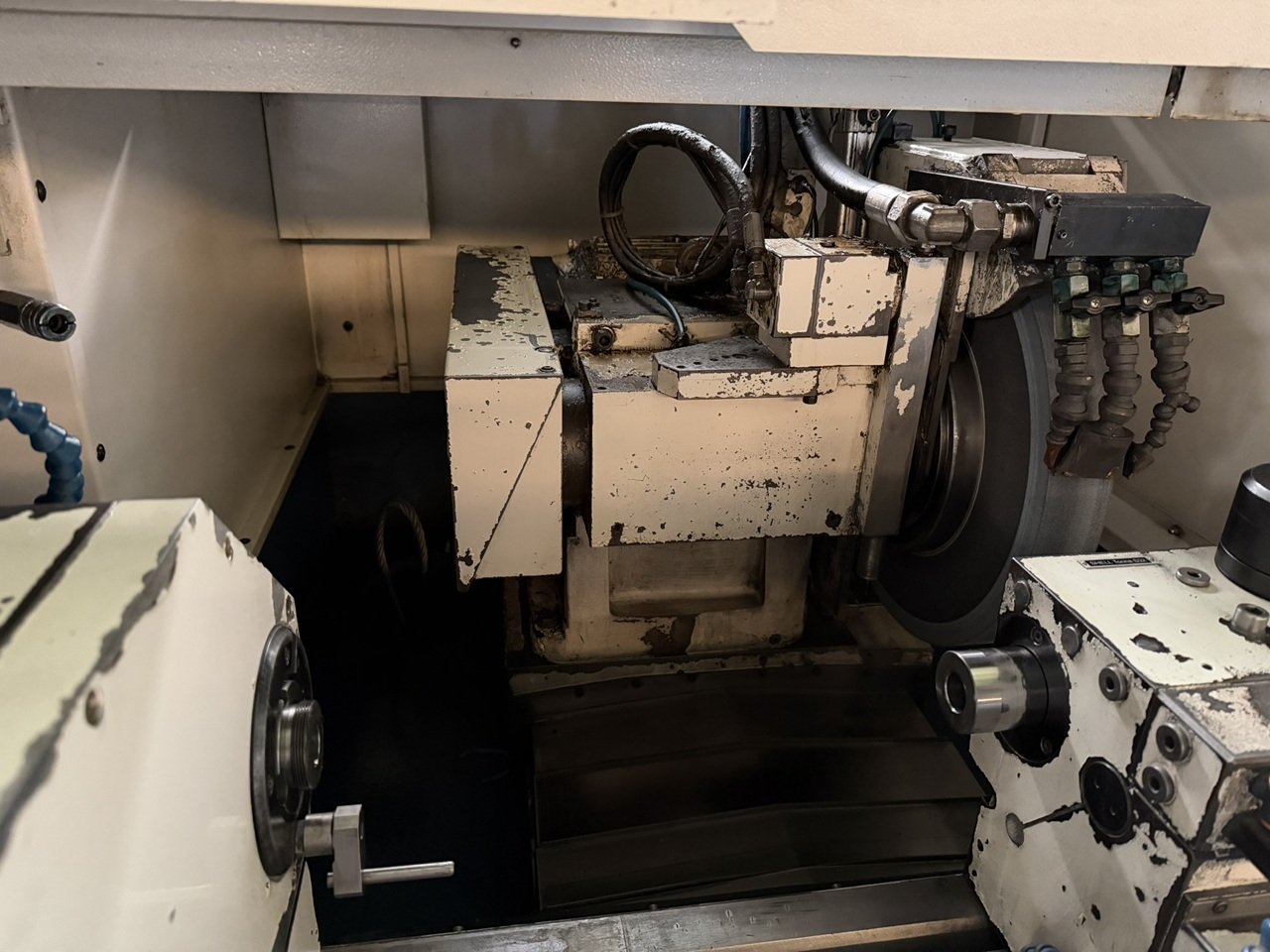

Grinding head (universal variant)
Swivel range –15 to 225°
(models from early 2000: -15 to 195°)
Pivoting axis 2.5 / 1° Hirth
Drive power 7.5 or 9 kW or 11 kW
Grinding wheel 500×63 (80/110F5) x203 mm

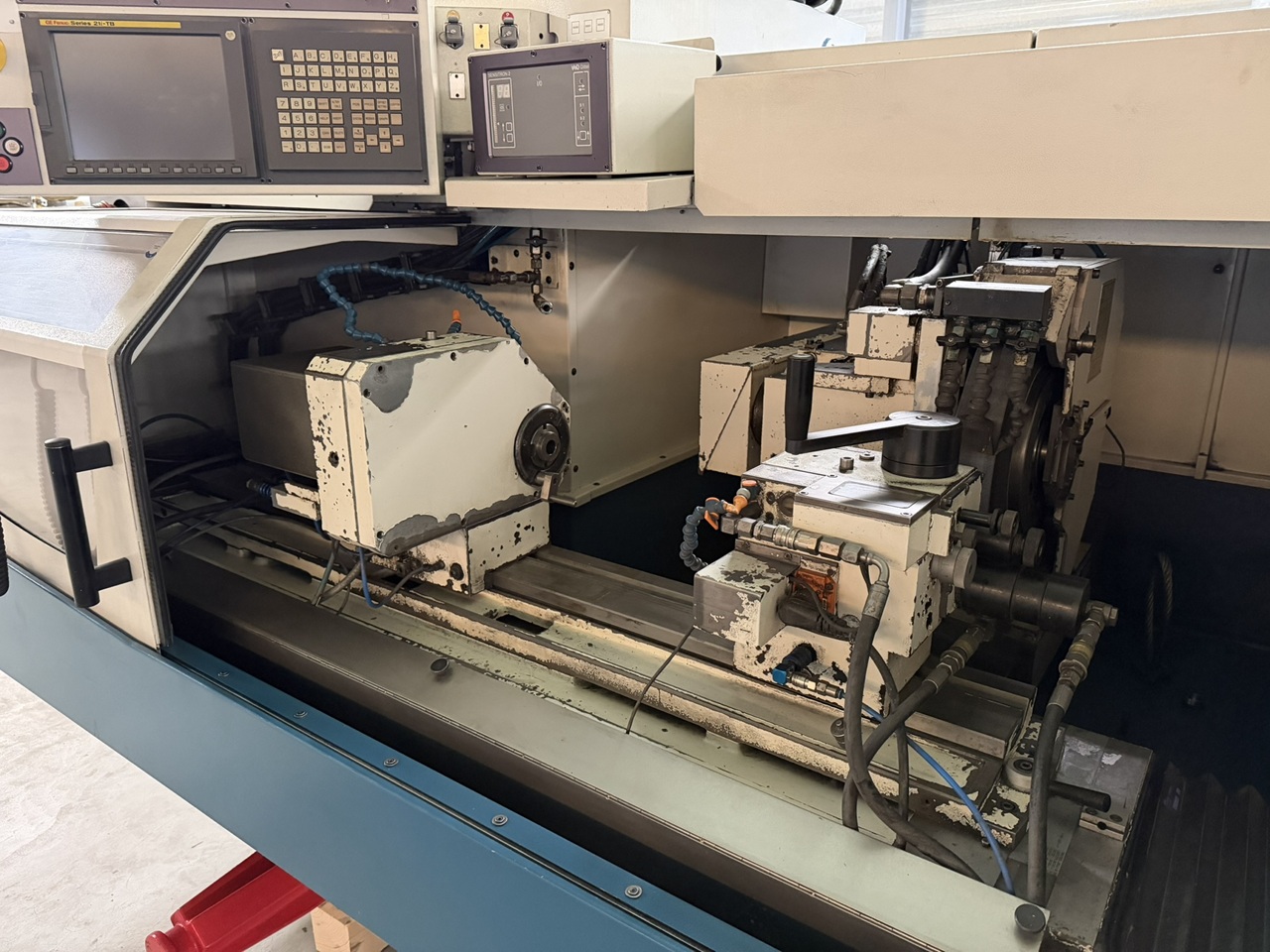

Workpiece-holding headstock
Speed 1 – 1,500 min⁻¹
Adapter taper CM4 or CM5 / ISO 50
Drive power 1.6 or 3.0 or 4.0 kW

Tailstock
Adapter taper CM3 or CM4
Sleeve stroke 35 / 50 mm
(early 2000 model: 35 mm)
Quill diameter Ø 50 mm
Fine adjustment +/- 40 µ

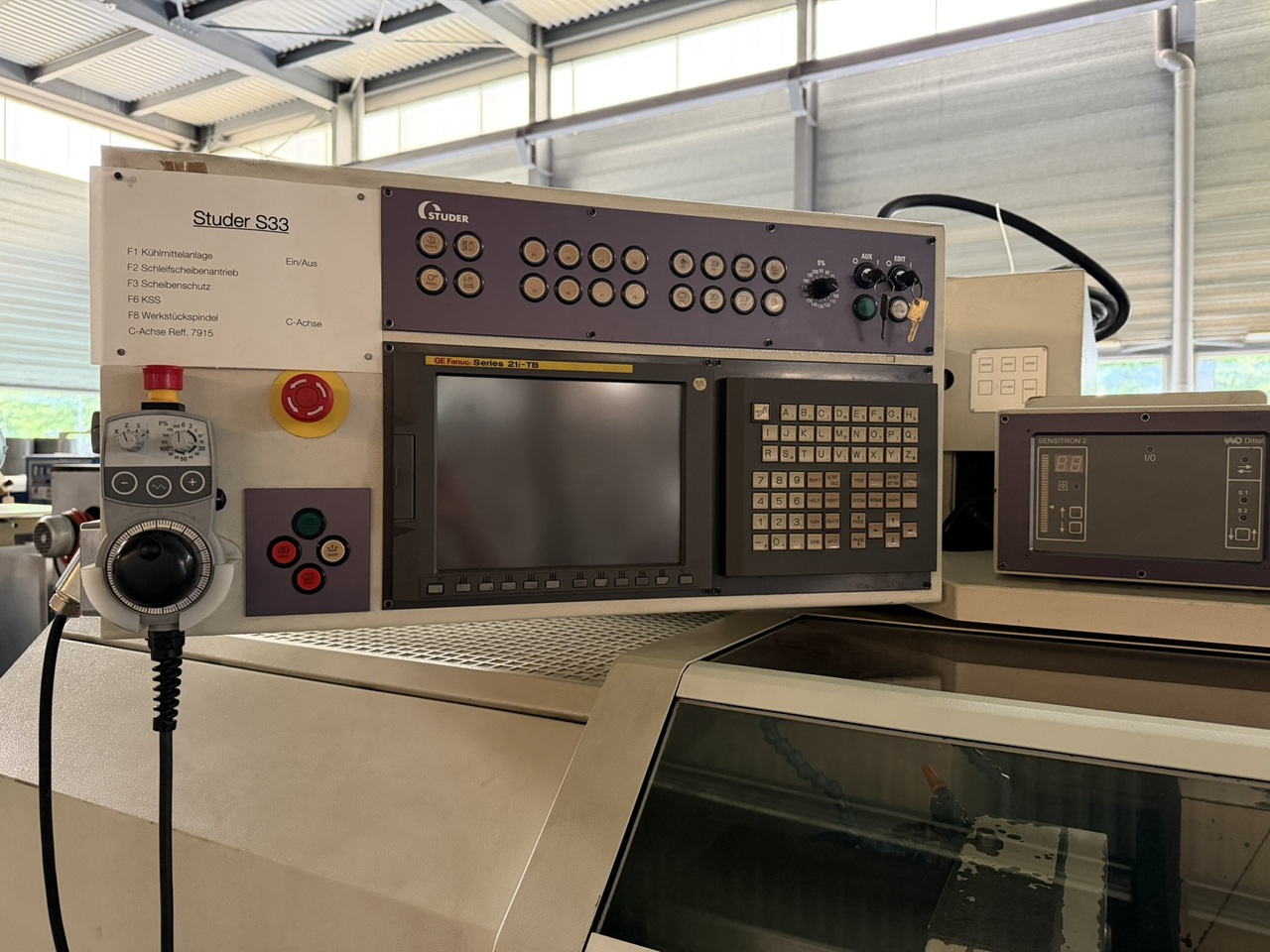

Fanuc Oi-TD Standalone Panel i control
(early 2000 model: Fanuc 21i-TB)

errors or omissions excepted, data given without obligation
