GRINDING MACHINE, GRINDING-SHARPENING

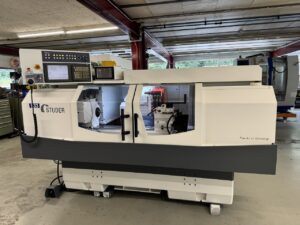

CYLINDRICAL GRINDING MACHINE STUDER S-33 CNC Year 2003 – Fanuc 21i-TB With 1x internal and 1x external grinding centres height 175 mm / between centres 650 mm
GRINDING MACHINE, GRINDING-SHARPENINGCYLINDRICAL GRINDING MACHINE STUDER S-33 CNC Year 2003 – Fanuc 21i-TB With 1x internal and 1x external grinding centres height 175 mm / between centres 650 mm
Fully overhauled: Mechanics, geometry, hydraulics and electrical parts checked and/or replaced.
Grinding headstock
Disassembly, cleaning of parts, replacement of worn and defective parts, overhaul of motor, replacement of bearings, replacement of belts, disassembly of spindle, replacement of seals and O-Rings + adjustment. New paintwork.Internal grinding attachment
Dismantle, clean parts, replace worn and faulty parts, overhaul motor, replace belts. New spindle bearings. New paintwork.Headstock
Dismantle, clean parts, replace worn and faulty parts, overhaul motor, replace belts. New spindle bearings. New paintwork.Tailstock
Dismantled, checked and overhauled.Hydraulics
Dismantle, check motor, replace hoses, defective and worn parts. Check hydraulic blockX-axis
Dismantle, replace worn parts such as O-Rings, seals, rings etc., overhaul hydraulic piston, grind tables.Z axis
Dismantle, grind tables, replace worn and defective parts, overhaul hydraulic piston, new paintwork.Electrical cabinet
Complete check, change various relays.Painting
Colors: White RAL 9003 and gray RAL 7011Geometry according to manufacturer's protocol.
Inspection and cleaning of various accessories
SKU: 2250022 -
CYLINDRICAL GRINDING MACHINE, GRINDING-SHARPENING
CYLINDRICAL GRINDING MACHINE KELLENBERGER 1500-U completely overhauled with new painting
CYLINDRICAL GRINDING MACHINE, GRINDING-SHARPENINGCYLINDRICAL GRINDING MACHINE KELLENBERGER 1500-U completely overhauled with new painting
Manufacturing origin CH
Netweight 2800 Kg
Custom position 8460.2920TECHNICAL DATA
Distance between centres 1500 mm
Distance between centres headstock and tailstock
overhanging 1650 mm
Height of centres, normal 125 mm
Height of centres,with removable intermediary plates 175/200 mm 225/250 mm
Max grinding diameter Ø 250 mm
Max. grinding diameter, with intermediate plates 350/400 mm 450/500 mmTable
Working surface of table 2060×140 mm
Maximum length and width for surface grinding 1750×200 mm
Longitudinal travel, manual or hydraulic 1750 mm
Manual table motion, 1 turn – coarse 20,006 mm
Manual table motion, 1 turn – fine 2,457 mm
Table speed, stepless hydraulic -6 m/min
Table swivel 6°
Reversing dwell 0-5 sec.Work spindle head
Workpiece speeds, stepless electric 20-400 min-1
Swivel 360°
Inner taper of work spindle MT5Tailstock
Inner taper of tailstock spindle MT3
Manual or hydraulic spindle speed return 30 mm
Inner taper for trueing diamond MT0Universal grinding spindle head
Transverse movement of wheel slide 285 mm
Hydraulic rapid whee slide motion, forward and reverse 40 mm
Grinding spindle speeds 1500 – 1700 – 2200 – 3600 min-1
Vertical motion of grinding spindle head, height of centres 125-330 mm
Wheel for cylindrical grinding max. 400x50x127 mm
Surface grinding wheel 250x20x76 mm
Swivel of grinding spindle head with locking every 90° 270°Grinding wheel infeed
1 graduation of feed scale 0.005 mm/Ø
Automatic feed, max 0.9 mm/Ø
Infeed per table reversal, stepless 0.001-0.03 mm/Ø
Infeed for plunge grinding 0.001-0.05 mm/sec.
Micrometer stop, 1 graduation 0.001 mm/ØMotors
Grinding spindle motor 2’900 min-1 / 4,0 hp
Work spindle motor 3’000 min-1 / 2,0 hp
DC motor 1,2 hp
Oil pump motor 2’760 min-1 / 1,0 hp
Cooland pump motor 2’850 min-1 / 0,12 hpInternal grinding attachment
Bore 70 mm
Speed of internal grinding spindle Ø70 mm. 14'000 min-1
Speed of internal grinding spindle Ø50 mm 21'000 min-1errors and omissions excepted-data given without obligation
SKU: 2250021 -
LEADSCREW LATHE, TURNING-SWISS TURNING
Leadscrew lathe Cazeneuve 360 HB-X
Manufacturing origin: France
Voltage: 380 – 50 -3
Net weight: approx. 1300 kg D
overall dimensions: 2000x1000x1250
Installed power: 5.2 kWTECHNICAL SPECIFICATIONS
CAPACITY
Center height: 180 mm
Distance between Type A and B centers: 800 mm
Distance between type C and BC centers: 750 mm
Maximum length of continuous carriage: 730 mm
Permissible diameter above bed: 360 mm
Permissible diameter above carriage body arms: 360 mm
Permissible diameter above cross slide: 190 mmBENCH
Bench width: 330 mmSPINDLE
Spindle hole diameter: 37 mm
Internal spindle taper: 5 Morse taper
Diameter of spindle neck: 70 mmTYPE A AND B COUNTERBORE
Sleeve taper: 4 Morse taper
Maximum quill travel: 140 mmCOUNTERPUMP TYPE C and BC
Sleeve taper: 5 Morse taper
Supplied with reduction sleeves, int.: 4 Morse taper
Maximum sleeve stroke: 150 mmFEED AND THREAD BOXES
Number of steps obtained: 55 mm
Extreme pitch values: 0.5 to 56
Number of A and C deck feeds: 55
Deck B and BC transv. and length: 116
Extreme feed values for deck A and C: 0.05 to 5.6
Transverse and longitudinal B and BC carriage: 0.0125 to 5.6CARRIAGE
Max. cross slide travel: 180 mm
Max. tool slide travel: 110 mm
Tool cross-section: 20 x 20Errors and omissions excepted, technical specifications given without obligation
SKU: 2250017 -
