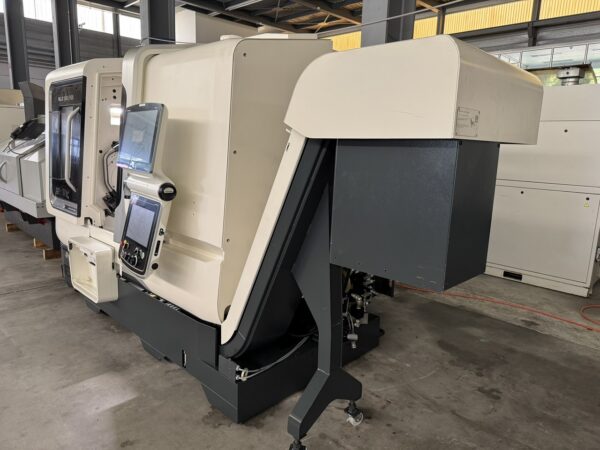

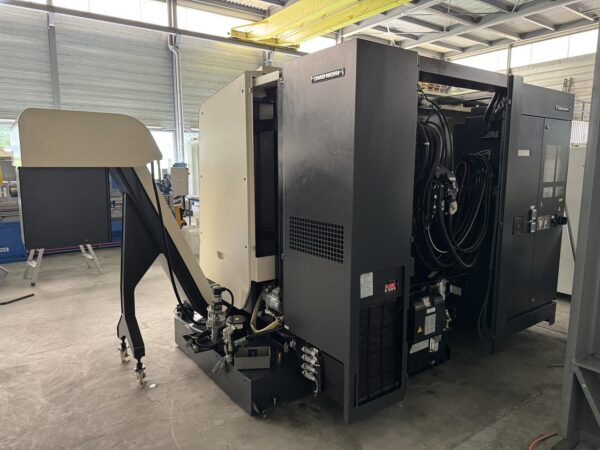

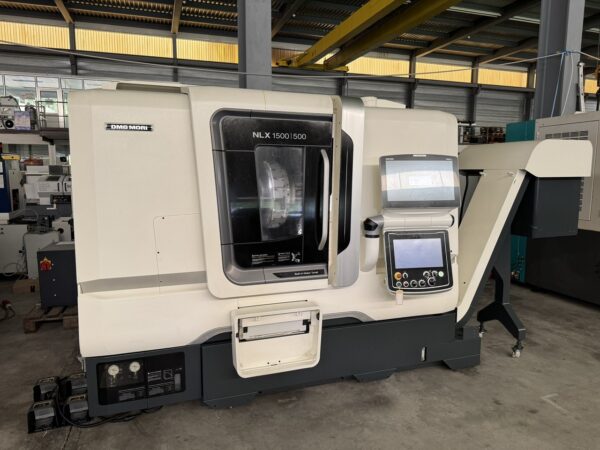

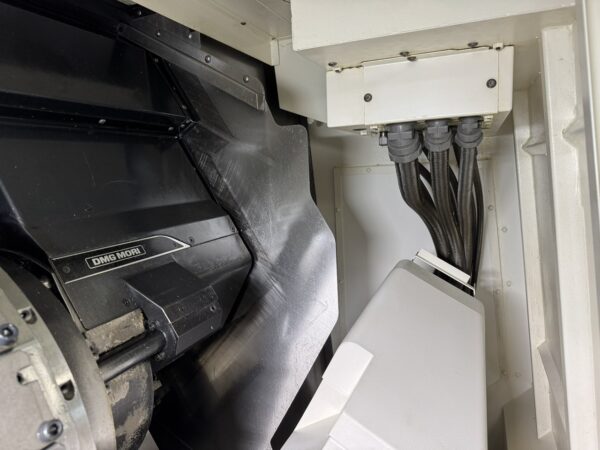

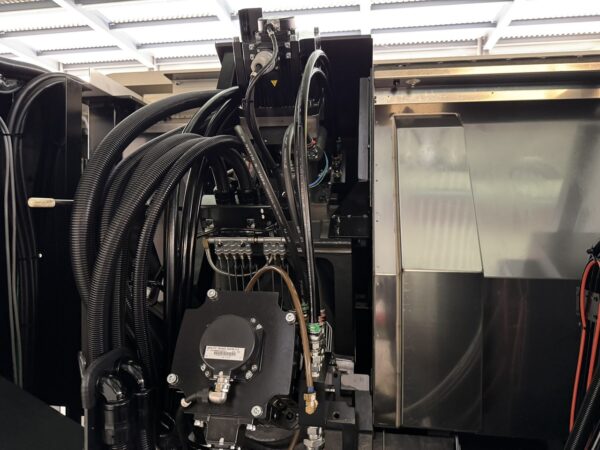

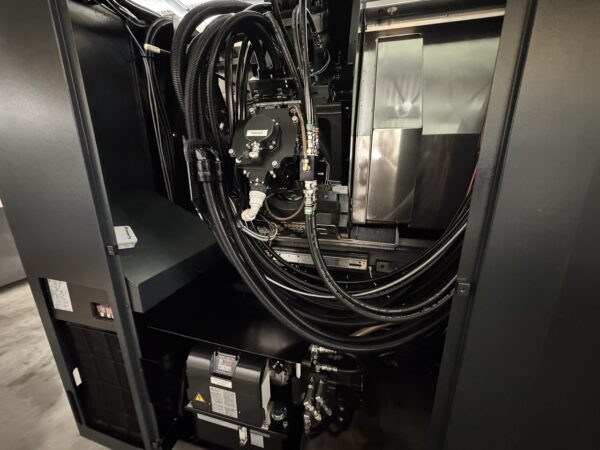

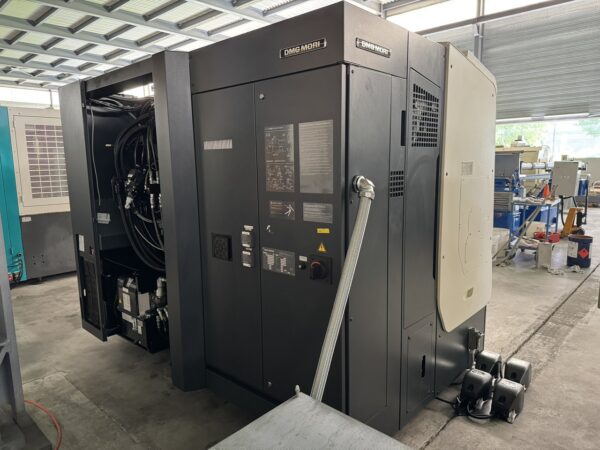

CNC TURNING MACHINE DMG MORI TYPE NLX1500SY/500

Inventory no.2240012, machine including :

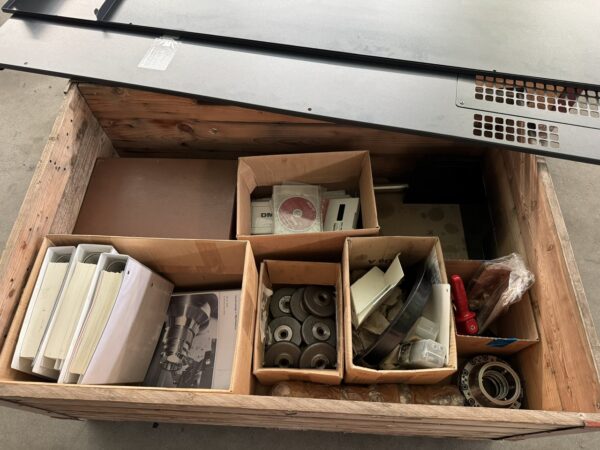

Accessories
Documents
Chip conveyor
Cooling system

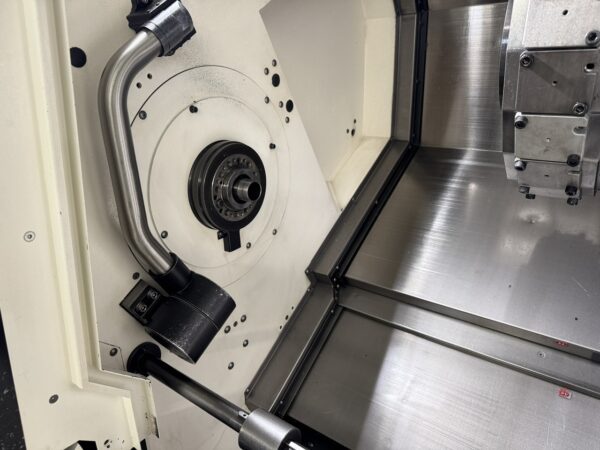

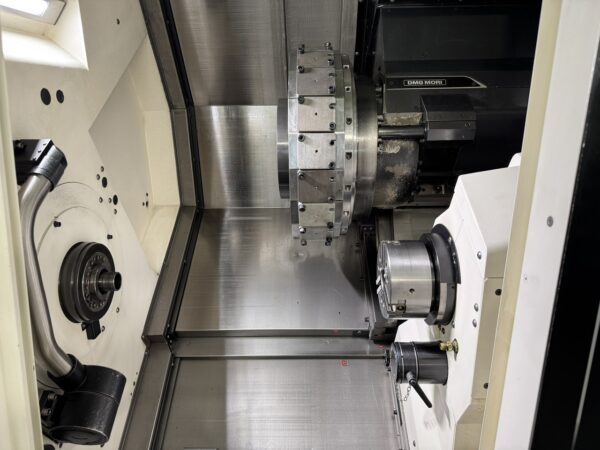

Counter spindle
driven tool stations

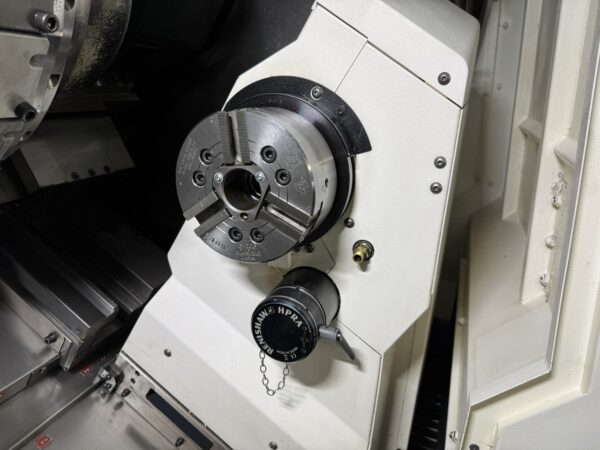

Hainbuch Spanntop mini 52 collet chuck
Kitagawa B208 three-jaw chuck
bar feeder interface
parts reclaimer
tool setter
Signal light
C-axis 0.001
Y axis

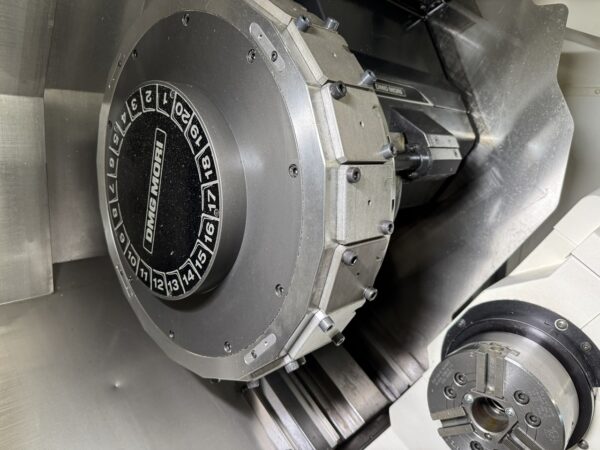

Turret 20 pos.
driven tools 1x X, 1x Z

Additional information
– Main and secondary spindle
– C-axis
– Drive tool
– 20pos. turret

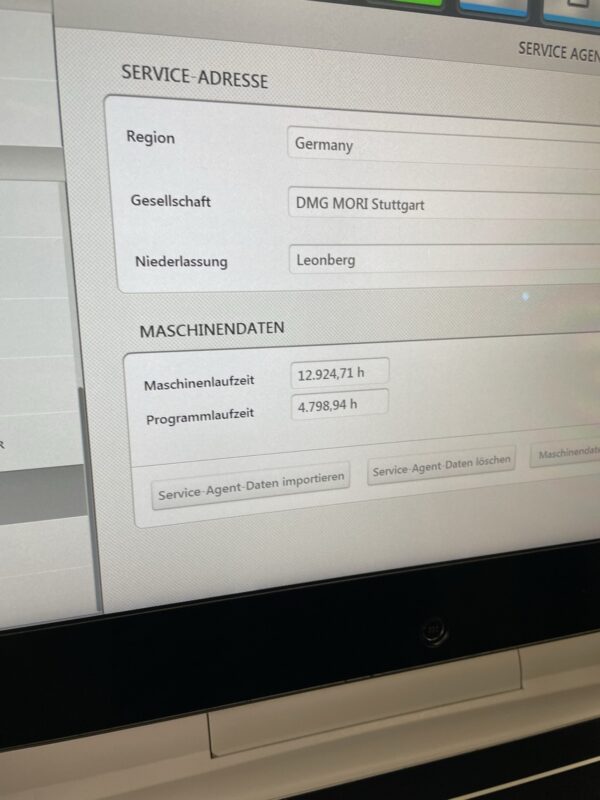

– Program duration: only 4,700 hours
– (HS) RIKEN SAD40MSP + clamping device
– (GS) RIKEN SAD40MSP + clamping device
– SK52 manual clamping head changer
– HAINBUCH SPANNTOP mini size Axzug. 52 (A5)
– Spindle 2 headstock specification
– High-pressure cooling system (800/1,100 W), max. pump pressure: 0.8 MPa
– Oil mist extraction interface
– Oil separator, as belt skimmer

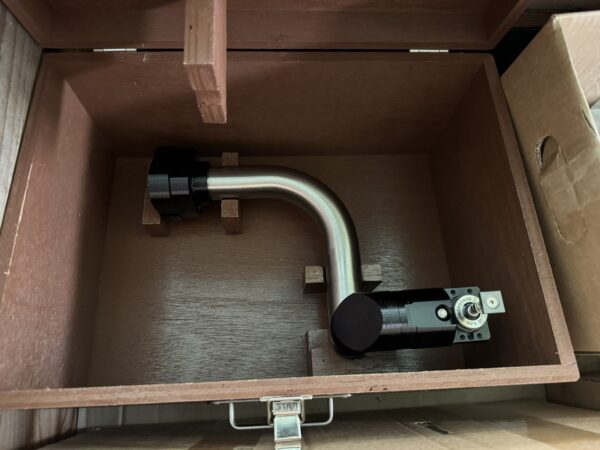

– Manual tool presetter in machine (pivoting)
– Manual tool presetter for counter-spindle (removable)
– Direct position measurement system (X Y Z)
– Integrated workpiece recuperator
– 10 external M codes
– Alternating speed
– Pocket and island milling
– Fast predefined cycles

Errors and omissions excepted, data given without obligation

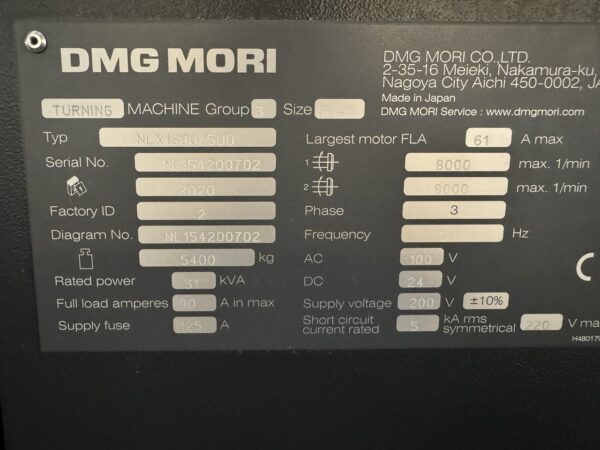

Manufacturing origin JP
Voltage 380V/50Hz/3ph
Netweight 5400 kg
Custom position 8458.9100
Dimensions mm

TECHNICAL DATA

Max. turning diameter 350 mm
Turning length 515 mm

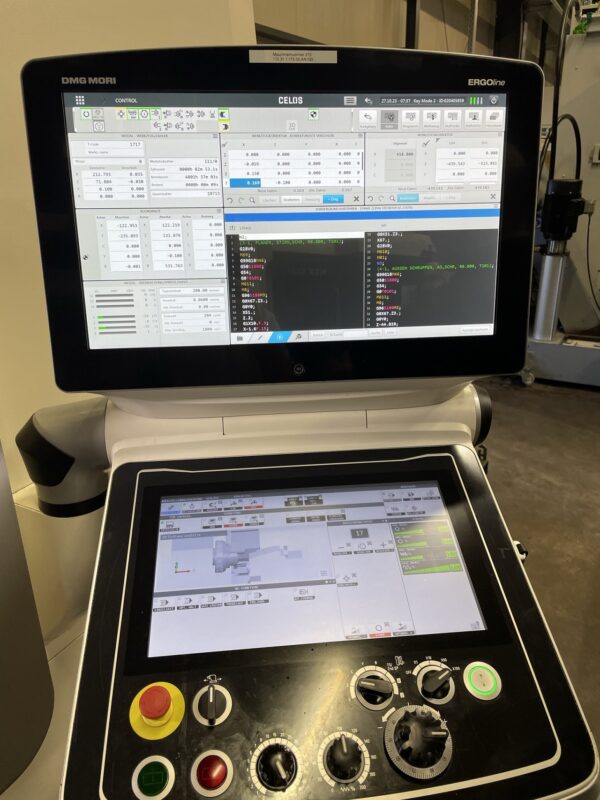

numerical control M730UM MAPPS Celos
Passage over bed 923.8 mm
Swing diameter on carriage 755 mm
standard turning diameter 260 mm
bar diameter. 34 mm

Main spindle :
Speed range – spindle 100 – 8,000 min/-1
power – spindle motor 11 / 7.5 kW
C axis 0.001
clamping diameter 210 mm

Subspindle :
Speed 8’000 min-1
Spindle nose A2-5

Axis travel :
X axis 260 mm
Z axis 580 mm
Y axis 100 (+/-50) mm

Turret:
Turret (X stations) : 20 stations
Driven stations : 20
Spindle diameter 25 mm
Driven tools spindle speed max. : 10,000 minutes/-1
Power – driven tools 5.5 / 3.7 Kw

Feed rates :
rapid feed X-axis 30 m/min
rapid feed Z axis 30 m/min
rapid counter-spindle feed 30 m/min
rapid feed Y axis 10 m/min
Rapid C – Axes 400 min -1

total power required 31 Kva

machine weight approx. 5.4 tonnes
machine dimensions approx. 4.0 x 3.0 x 3.2 m

errors and omissions excepted-data given without obligation
