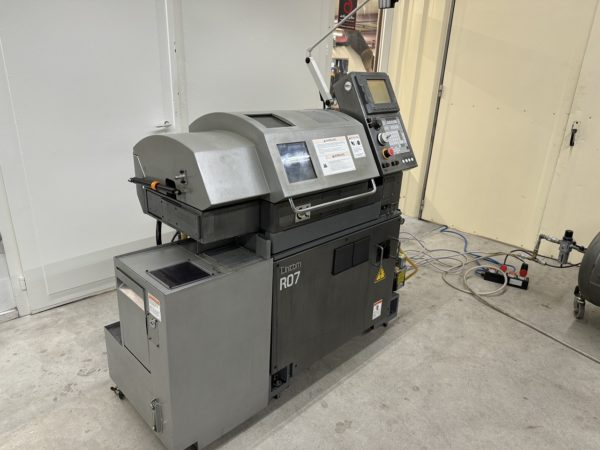

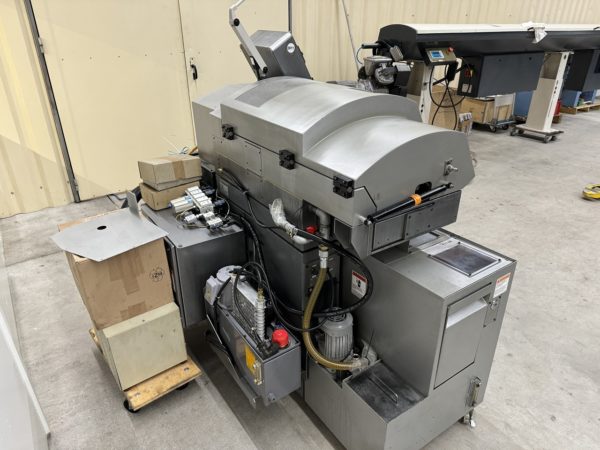

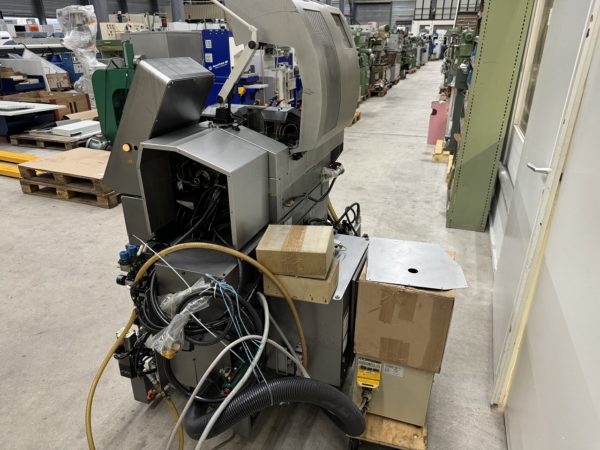

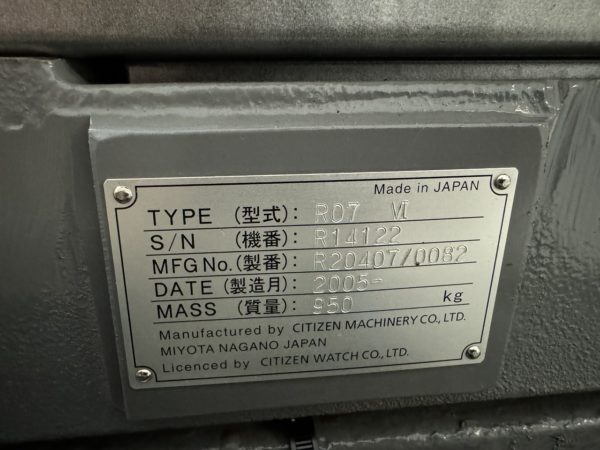

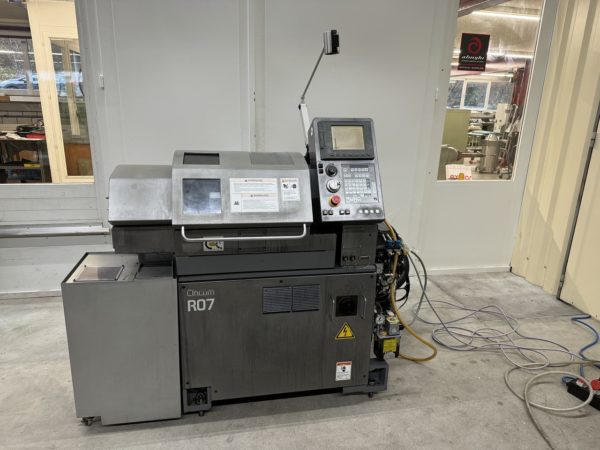

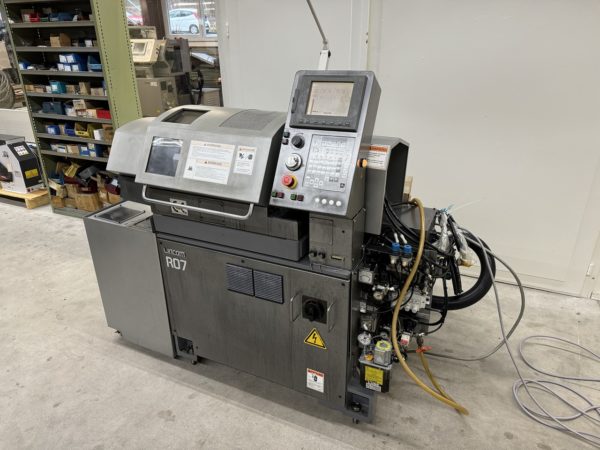

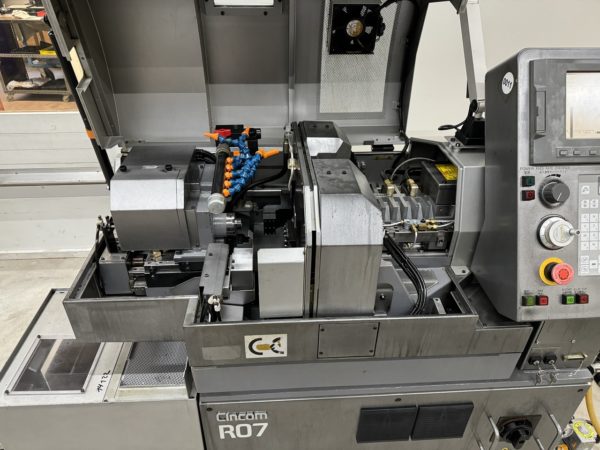

CNC AUTOMATIC LATHE “CITIZEN” CINCOM R07-VI

Manufacturing origin JP
Voltage 200V 3ph 50/60Hz
Netweight 950 kg
Custom position 8458.9130
Dimensions 141x56x140 cm

TECHNICAL DATA
(standard)

Number of axes 6
Number of spindles 2

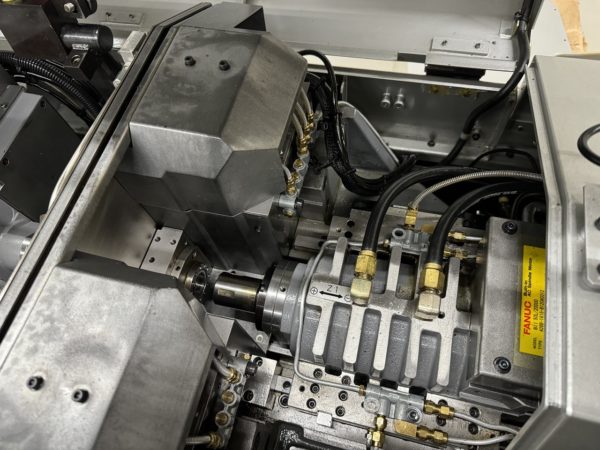

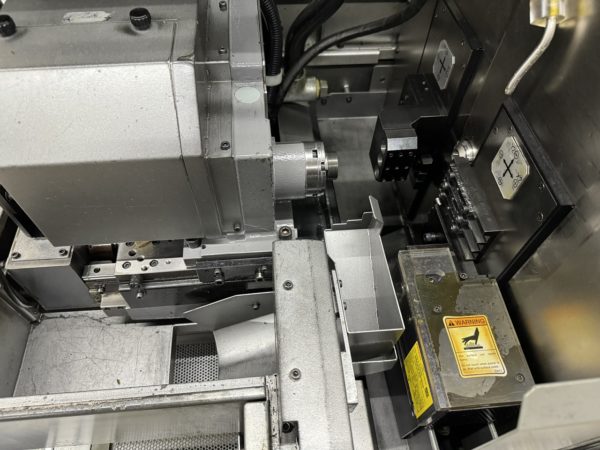

Main spindle
Max bar diameter Ø 7 mm
Max turning length 40 mm
Travel 40 mm
Spindle speed 16000 min-1
Spindle power 1,1 kW
Indexing precision C-axis 0.0001°

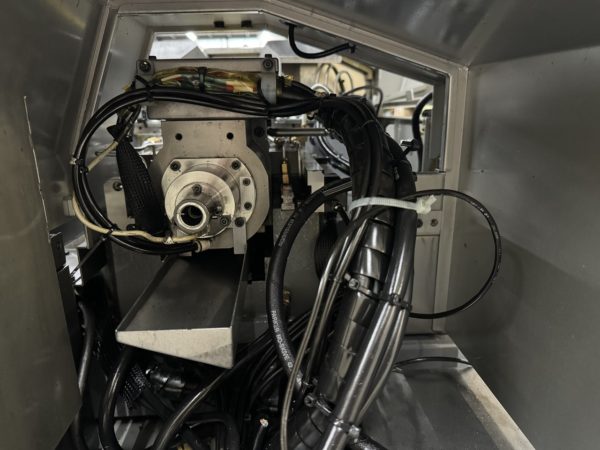

Back-spindle
Max bar diameter 7 mm
Spindle speed 10000 min-1
Power 0,5 kW
Indexing precision C-axis 1°

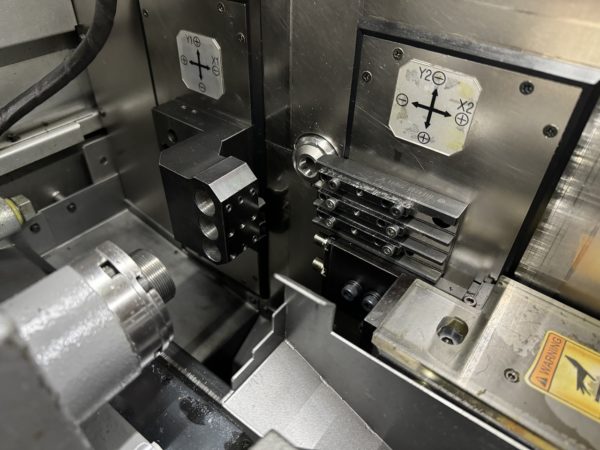

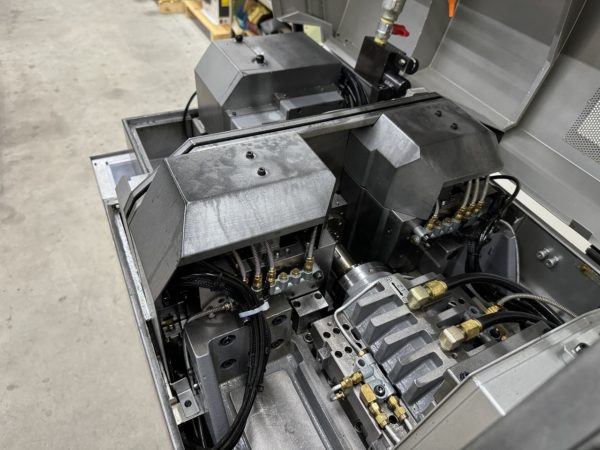

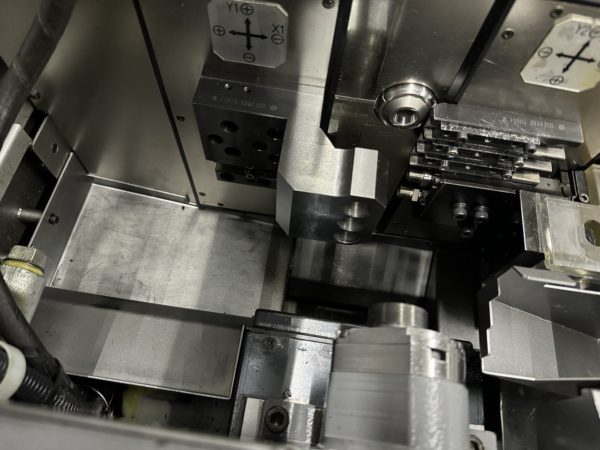

Gang tool post 1
Number of positions 5
Driven positions 2
Live tools speed 8000 min-1

Gang tool post 2
Number of positions 3

End attachment
Number of positions 3

Counter-operation
Number of positions 3

errors and omissions excepted-data given without obligation
