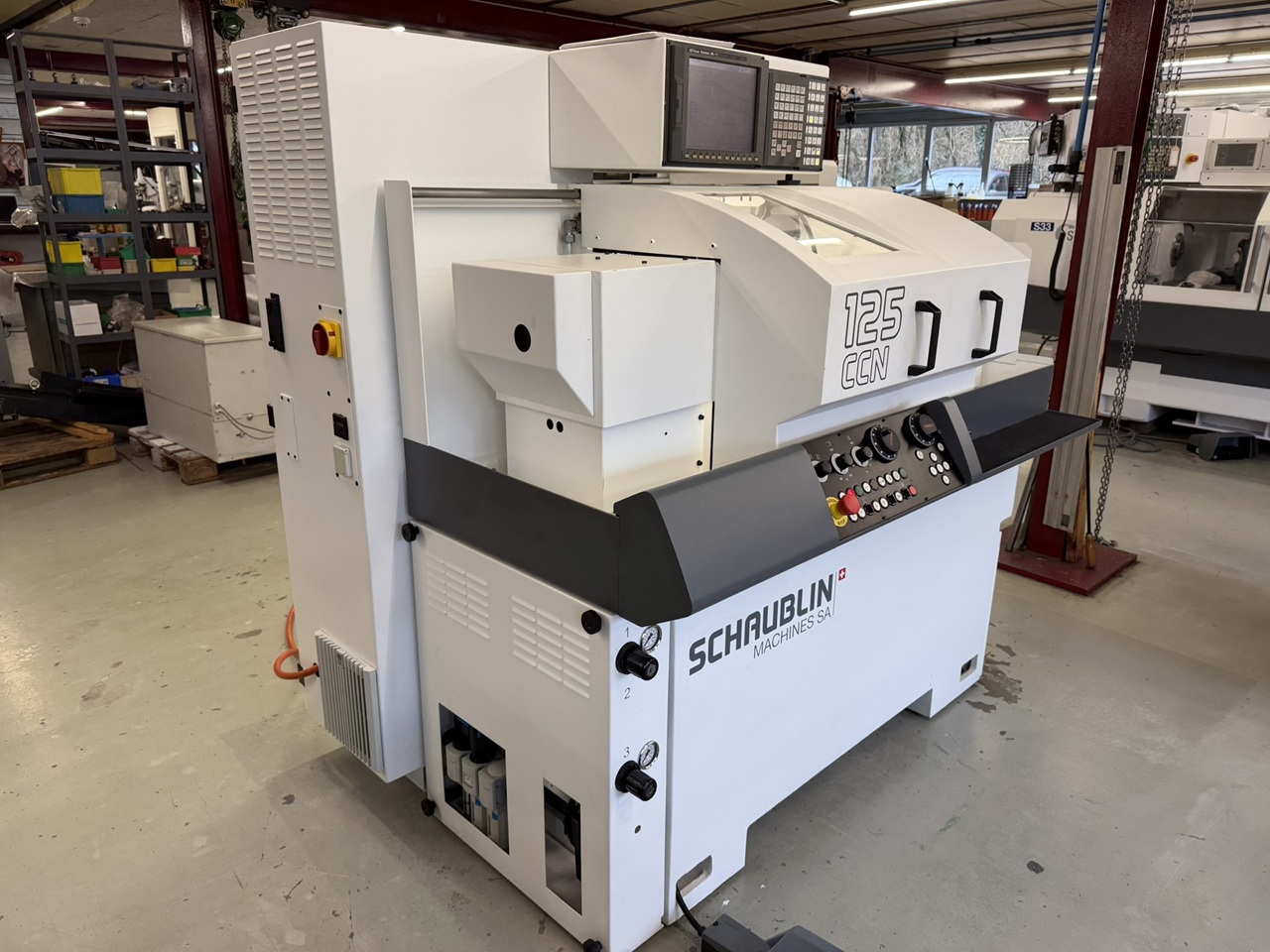

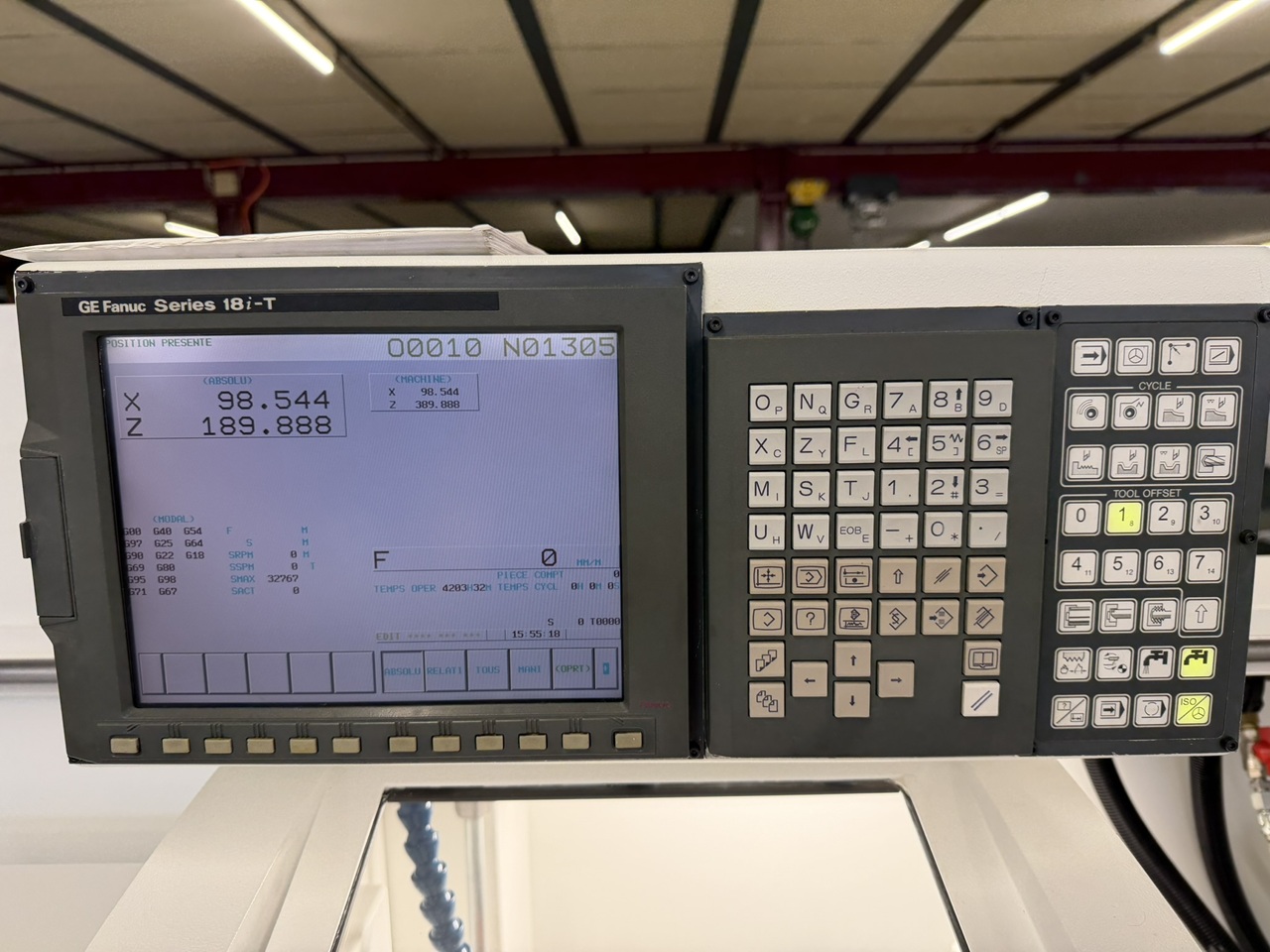

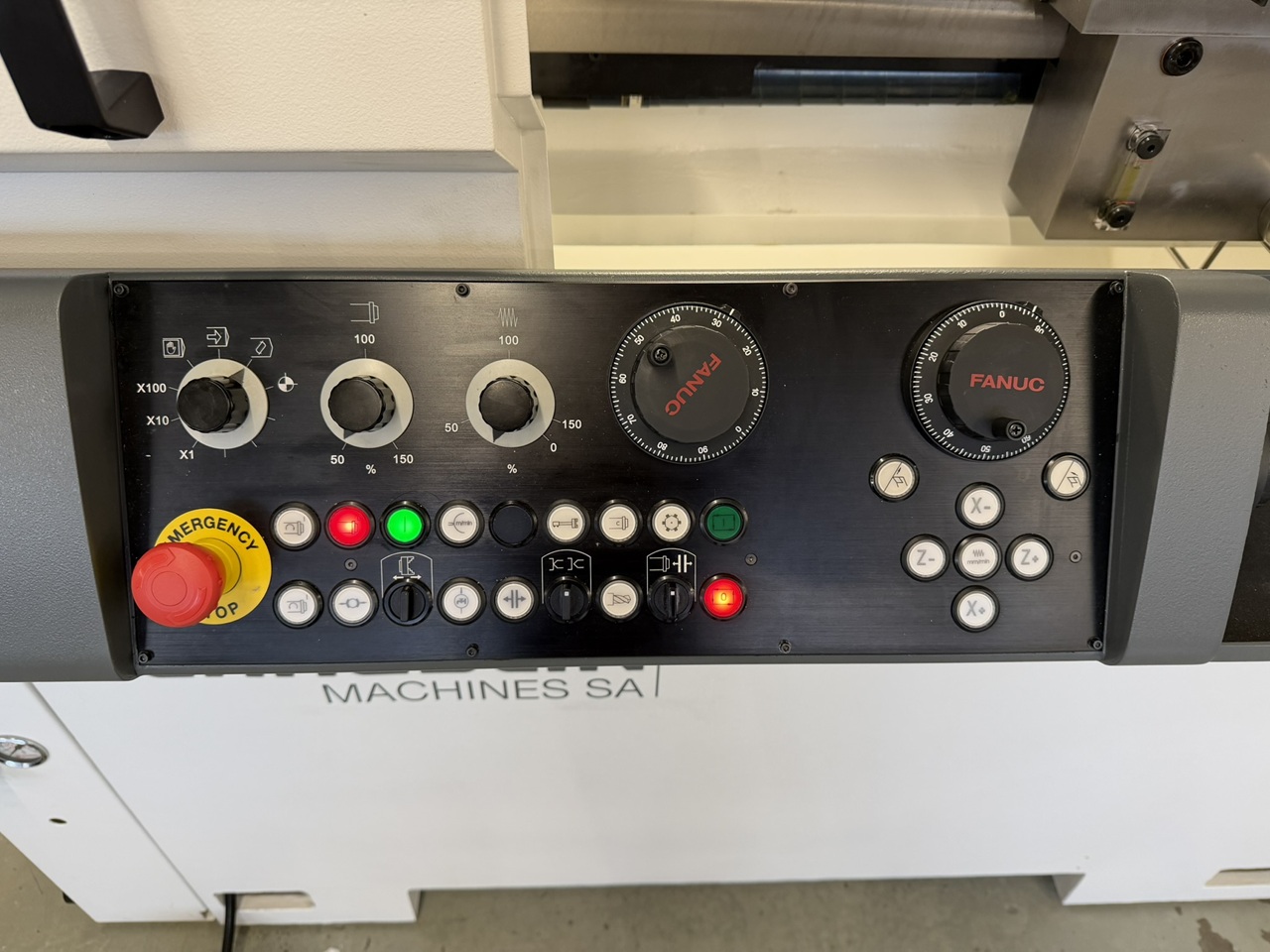

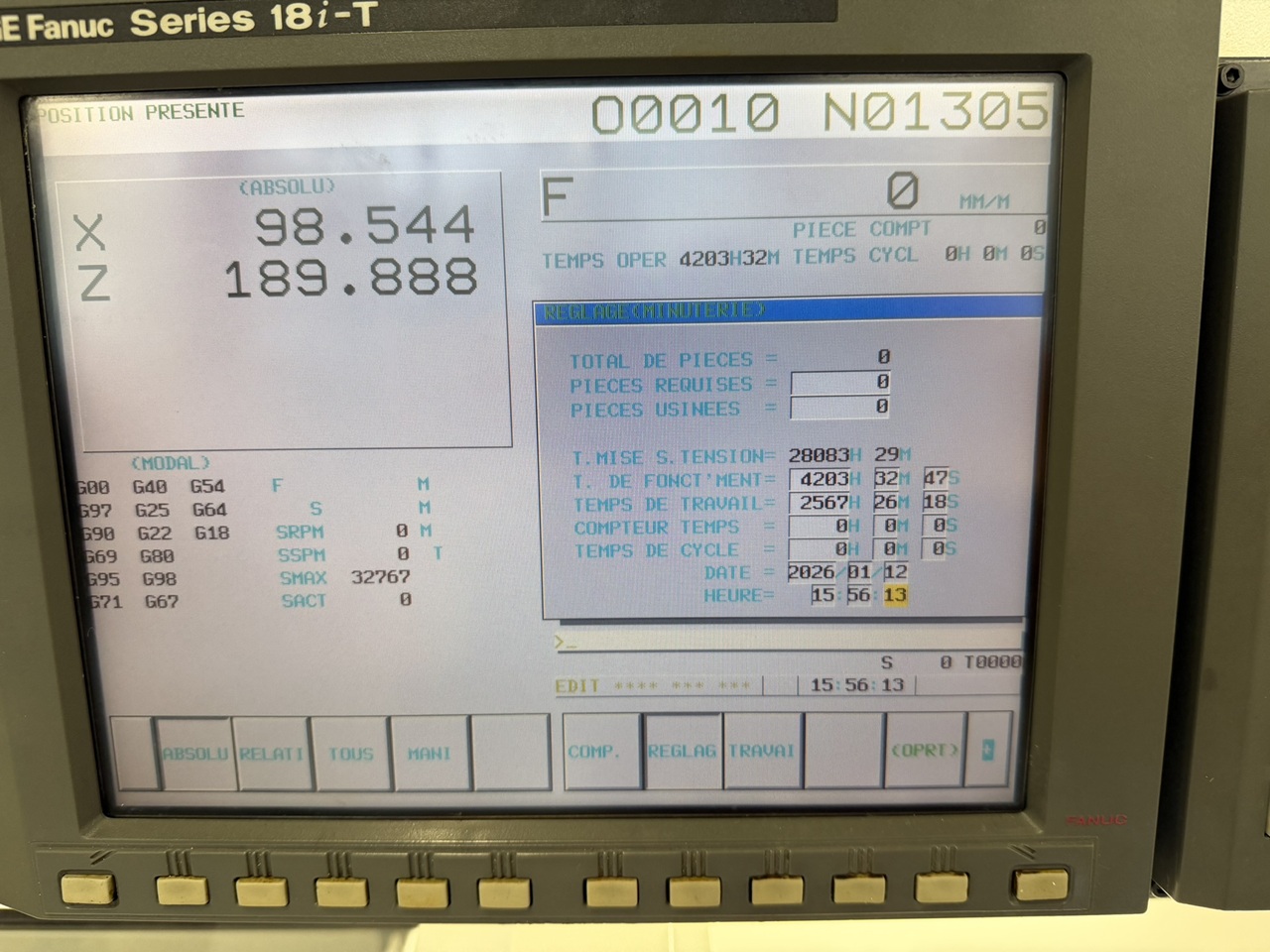

CNC LATHE SCHAUBLIN TYPE 125-CCN R-T A2-4
SKU: 2230041Completely overhauled:
Mechanics, geometry, hydraulics and electrical parts (checked and/or replaced)
Head stock
Dismantling, cleaning parts, replacing worn and defective parts, replacing bearings, replacing belts, dismantling spindle, replacing seals and O-Ring + adjustment. New paintwork.
Revolver
Dismantling, cleaning of parts, replacement of worn and defective parts, new paintwork and grinding of faces.
Tailstock
Dismantled, checked and overhauled. New paintwork
Hydraulics and pneumatics
Dismantled, checked engine, replaced pipes, defective and worn parts.
X-axis
Dismantling, replace worn parts such as O-Ring, seals, segments. New ball screw and pad
Y axis
Dismantling, replace worn parts such as O-Ring, seals, segments. New ball screw and pad

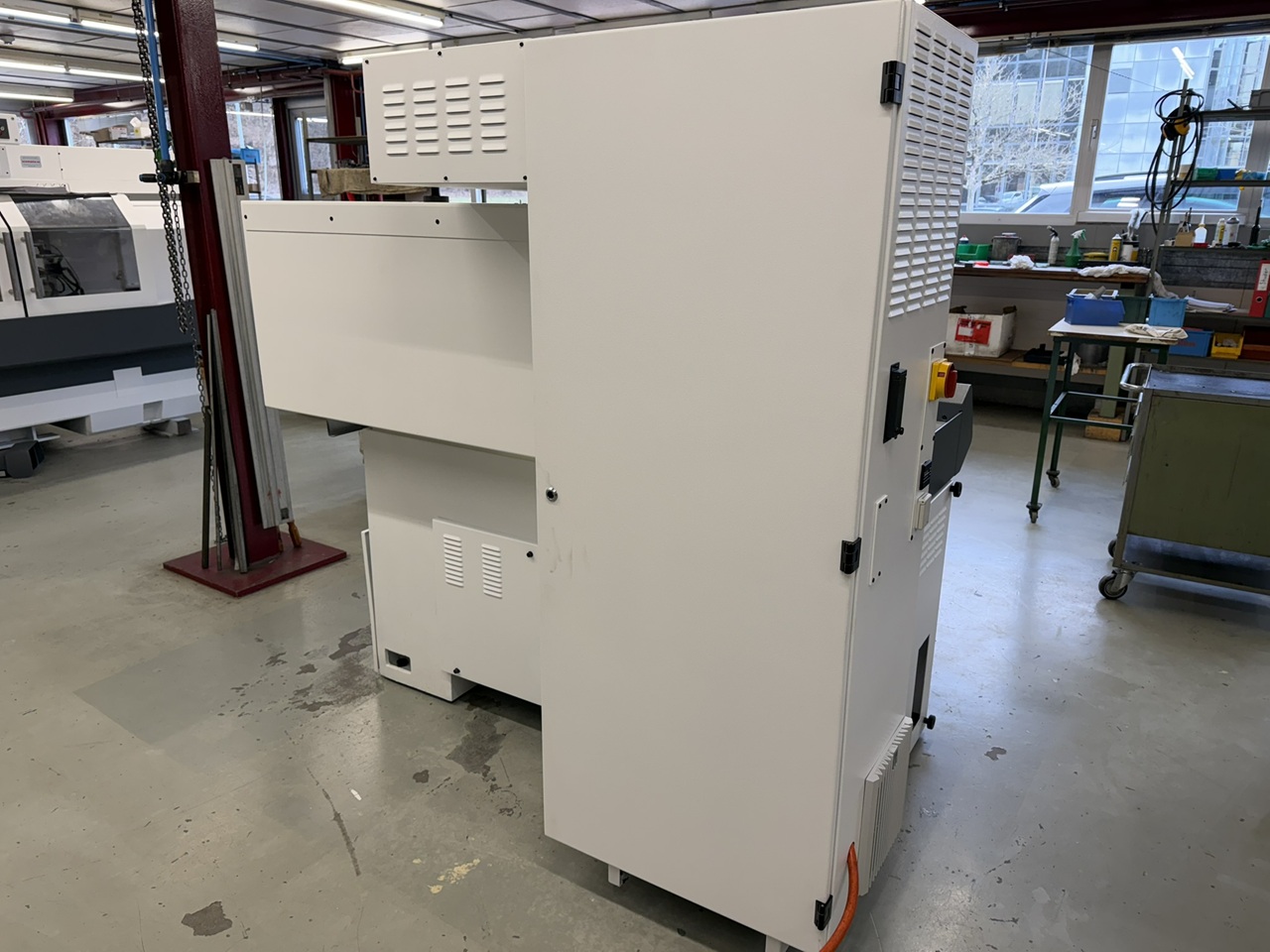

Electrical cabinet
Complete check, replacement of various relays.
Paintwork
Colours: White RAL 9003 and grey RAL 7011
Geometry according to manufacturer's protocol.
Inspection and cleaning of various accessories
Year 2002
Request a quotation
Inventory 2230041 including :
– A2-4 headstock
– 1 set of equipment for using F38 collets on A2-4 ref 110-37.135
– 27 F-38 collets ref 76-0072
– 1 adjustable extractor stop for F38 collets ref 110-37.140
– 1 RHU Ø 125 mm A2-4 3-jaw chuck with various sets of jaws
– 2 bar holders for Ø 8 bore form E2 VDI20 ref 4100.00147
– 2 do Ø 10 E2 ref 4100.00148
– 2 do Ø 12 E2 ref 4100.00149
– 2 do Ø 16 E2 ref 4100.00150
– 2 do Ø 20 E2 ref 4100.00151
– 1 do Ø 25 E2 ref 4100.00152
– 5 left-hand radial toolholders, short form B2 VDI20 ref 4100.00140
– 1 left-hand radial tool holder, short form B4 ref 4100.00141
– 2 left-hand axial toolholders, short form C2 ref 4100.00142
– 1 Quick 0/KF VDI 20 knurled cutter head
– 1 CM3 pneumatic tailstock ref 125-65.250
– 1 microscope holder ref 125-60.005
Manufacturing origin Swiss
Voltage 380/50/3
Netweight 1400 kg
Custom position 8458.1120
Dimensions 180x128x172 cm
TECHNICAL DATA
CAPACITIES
Max turning diameter 270 mm
Max swing over carriage 115 mm
Centres height over carriage 60 mm
Max turning length B32 265 mm
Centres height from the floor 1’162 mm
HEADSTOCK A2-4 / Camlock D1-3’’
Spindle for collets Schaublin Hainbuch / F38 / B32
Spindle speed 50-5’000 min-1
AC motor drive : power, continuous / intermittent 5.5 / 7.5 kW
AC motor drive : torque, continuous / intermittent 42 / 58 Nm
Spindle throughbore (without drawbar) 39 mm
Max throughbore with collet 32 mm
Max throughbore with automatic chuck 32 mm
PNEUMATIC CLAMPING
Adjustable axial clamping force, at 5 bars 1’150 daN
CARRIAGE
Cross travel, X axis 190 mm
Resolution, X axis (on radius) 0.0005 mm
AC motor drive : torque, continuous / intermittent 4 / 14 Nm
Ball screw, Ø x step Ø 20 x 5 mm
Longitudinal travel, Z axis 390 mm
Resolution, Z axis 0.001 mm
AC motor drive : torque, continuous / intermittent : 4 / 14 Nm
Ball screw, Ø x step Ø 32 x 5 mm
FEEDS
Work feeds X and Z axes, stepless 0 – 5 m/min
Rapid feeds X and Z axes 8 m/min
TOOLING SYSTEM : REVOLVER
Standardised attachment of tool holders VDI 20
Number of stations, fixed / live 8 / –
Max tool section 16×16 mm
Integrated cooling and indexing in both directions yes
COOLANT
Tank capacity 55 L
Pump rate 10L/min
Pump pressure 1.7 bar

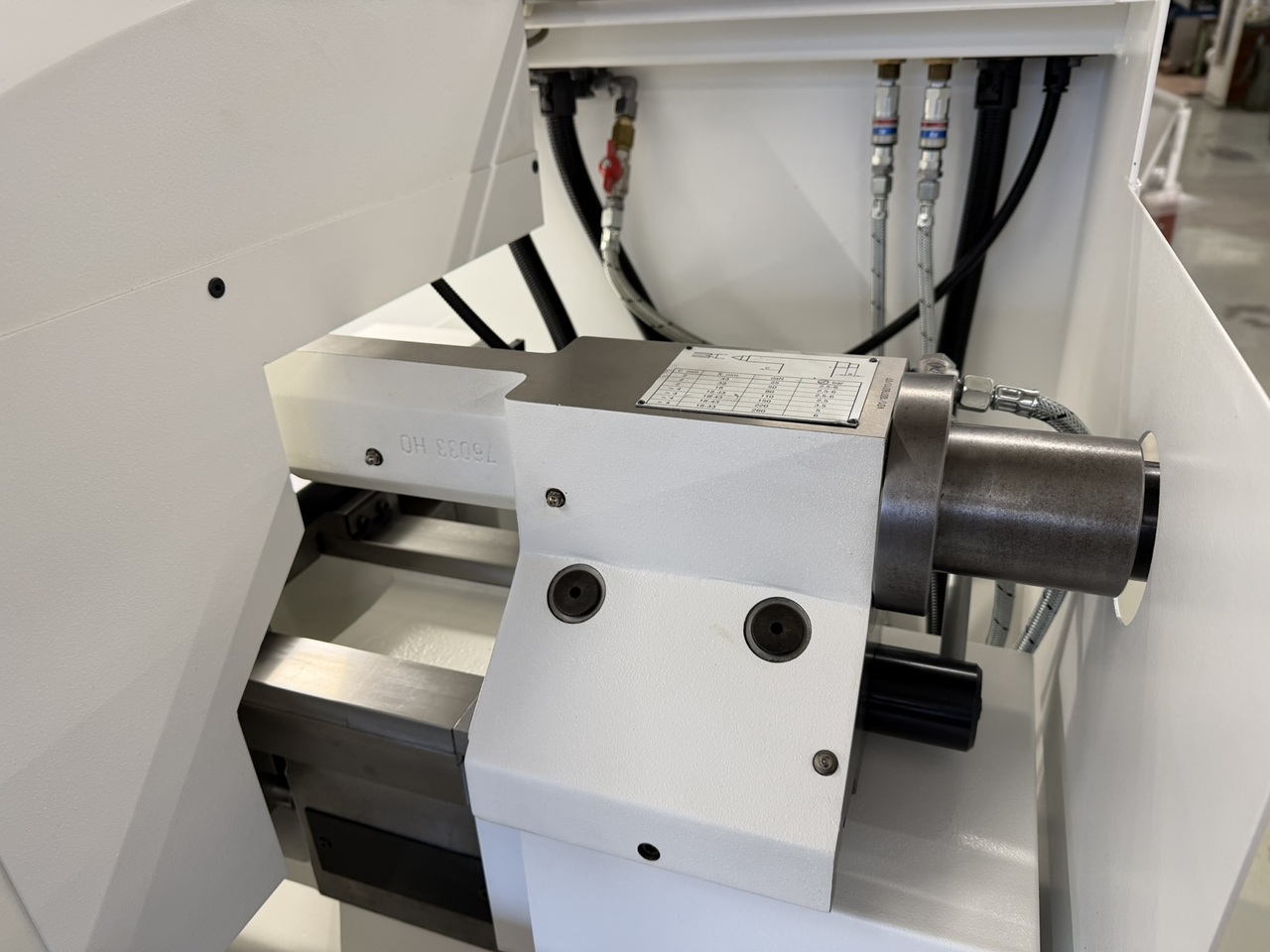

PNEUMATIC TAILSTOCK
Spindle taper MT3
Spindle external diameter 45 mm
Spindle stroke 70 mm
Adjustable pressing force 25-260 daN
errors and omissions excepted data gived without obligation
