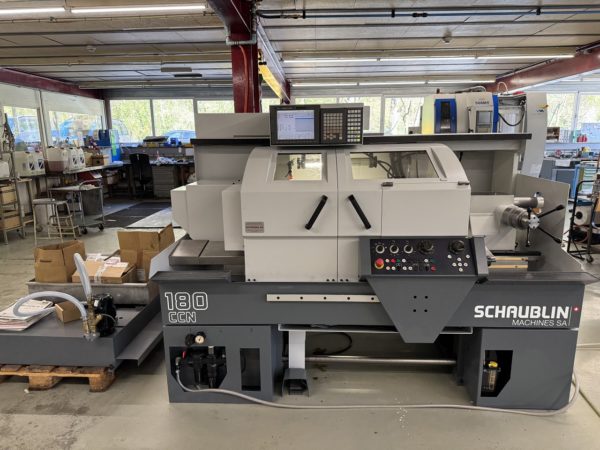

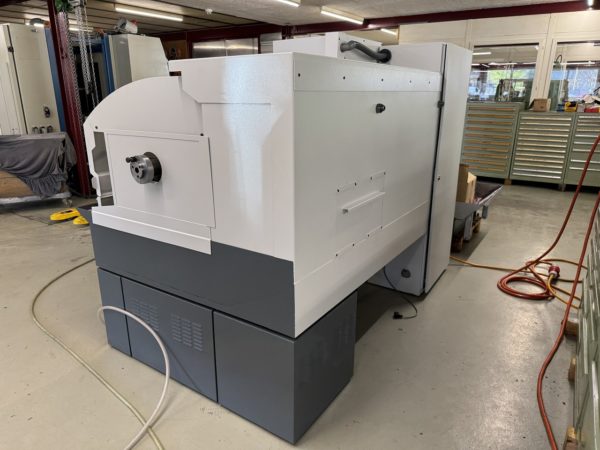

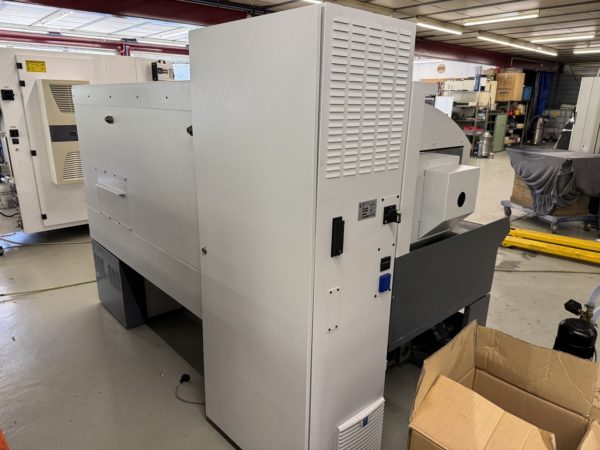

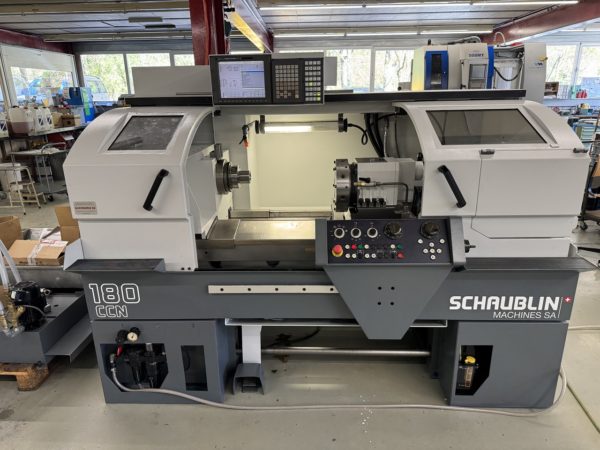

CCN LATHE SCHAUBLIN TYPE 180-CCN R-T A2-5
SKU: 2230052Year 2000 with Fanuc 18i- Spindle A2-5 – revolver 8 pos. VDI 30
Completely overhauled:
Mechanics, geometry, hydraulics and electrical parts (checked and/or replaced)
Spindle
Dismantling, cleaning parts, replacing worn and defective parts, replacing belts, dismantling spindle, replacing seals and O-Ring + adjustment. New paintwork.

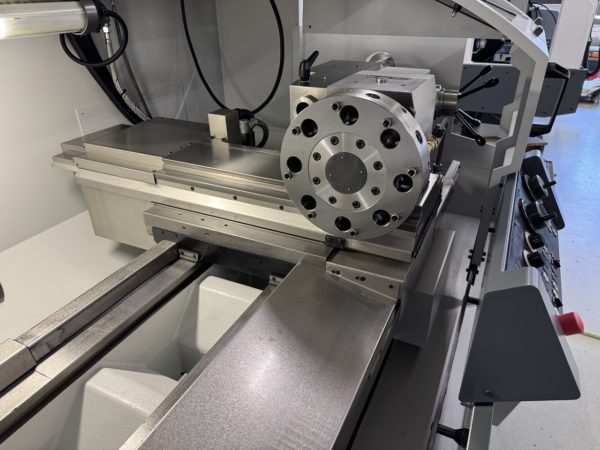

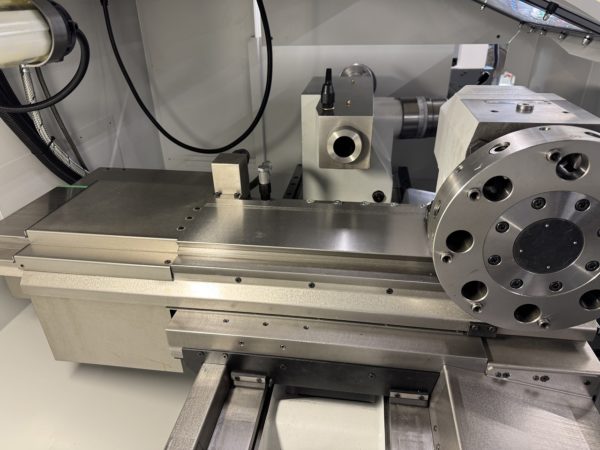

Revolver
Dismantling, cleaning of parts, replacement of worn and defective parts, new paintwork and grinding of faces.

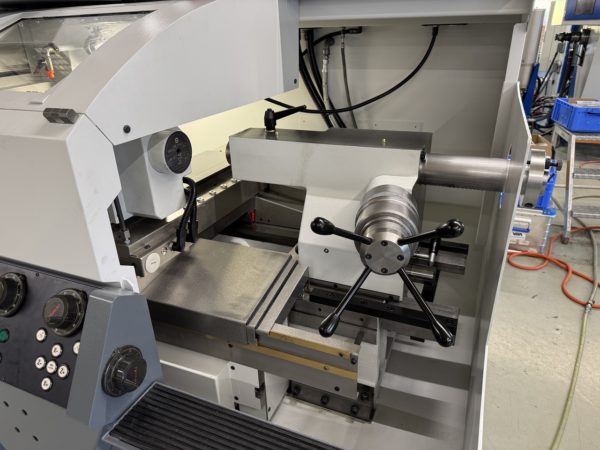

Tailstock
Dismantled, checked and overhauled. New paintwork
Hydraulics and pneumatics
Dismantled, checked engine, replaced pipes, defective and worn parts.
X-axis
Dismantling, replace worn parts such as O-Ring, seals, segments. New ball screw and pad
Z-axis
Dismantling, replace worn parts such as O-Ring, seals, segments. New ball screw and pad

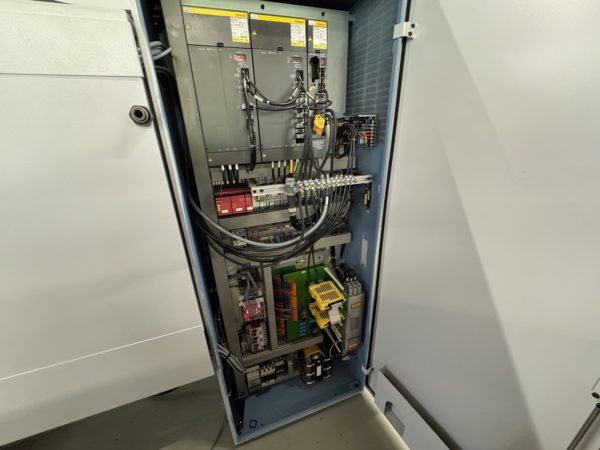

Electrical cabinet
Complete check, replacement of various relays.
Paintwork
Colours: White RAL 9003 and grey RAL 7011
Geometry according to manufacturer's protocol.
Inspection and cleaning of various accessories
Request a quotation

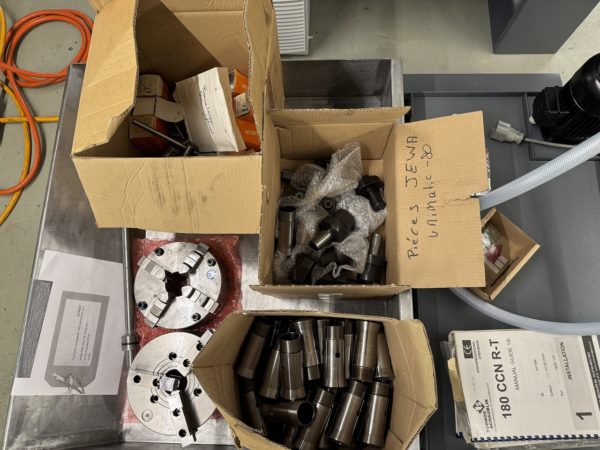

Inventory 2230052 including :

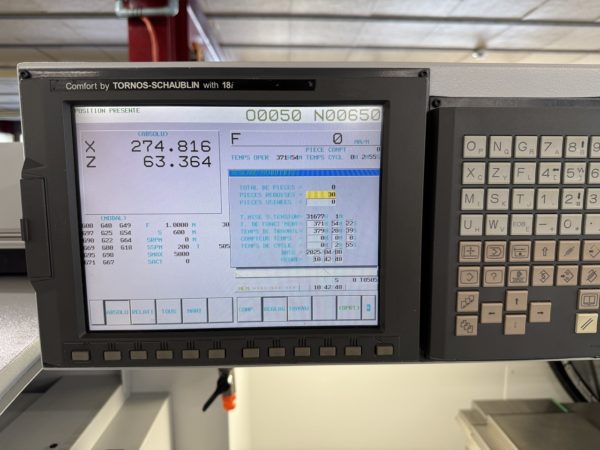

– 1 Fanuc 18i control unit

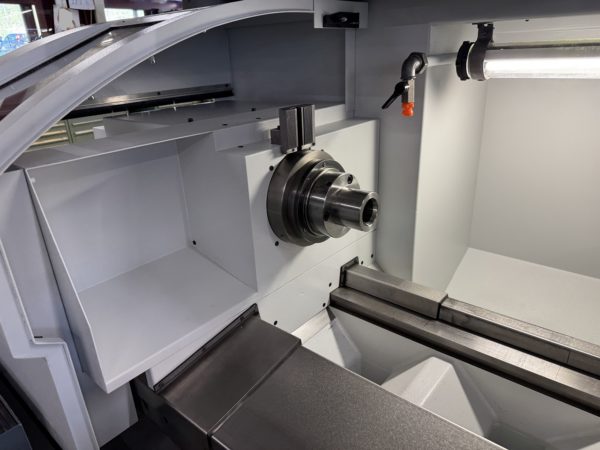

– 1 A2-5 spindle head
– 1 VDI 30 8-position revolver
– 1 Cross headstock 180-65.100
– 1 Equipment for using B-45 collets 180-27.205
: On A2-5 spindle with drawbar 180-27.209
– 1 Adjustable stop and extractor B45 ref 180-27.185
– 1 Set of 57 B-45 collets
– 1 RHU manual 3-jaw chuck Ø 200 mm passage 51 mm A2-5 ref 4000.00083
: With 1 set of 3 reversible jaws, 1 set of basic jaws with inserts
– 1 manual chuck with 4 FN jaws Ø 200 mm mm passage 55 mm A2-5 ref 4000.00086
: With 1 set of 4 drilling jaws and 1 set of 4 turning jaws
– 5 levelling elements

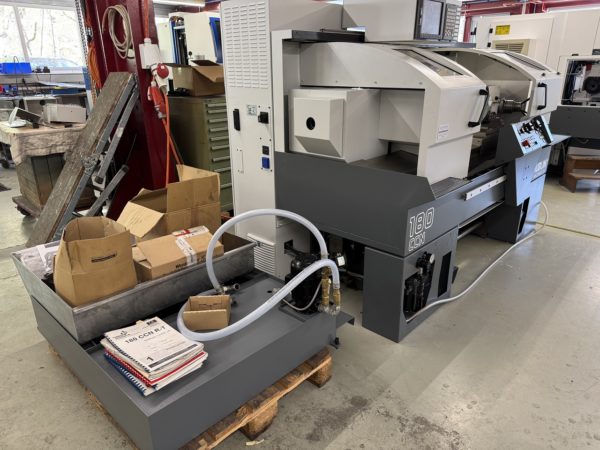

– 1 coolant device
– 1 stand alone 180-60.005
– 3 rectangular transverse toolholder, left short Forme B2 ref 4100.00100
– 1 toolholder for carbide indexable dril bore 20 mm forme E1 ef 4100.00105
– 1 collet holder ESX-25 forme E3 with nut EX25 and 1 collet Ø 4 ref 4100.00116
– 1 boring bar holder, bore Ø 10 mm ref. 4100.0109
– 1 dito Ø 12 ref 4100.00110
– 1 dito Ø 16 ref 4100.00111
– 1 dito Ø 20 ref 4100.00112
– 1 dito Ø 25 ref 4100.00113
– 1 coolant device
OPTION
1 hinged steady rest 3 dogs for Ø 30 – 120 mm ref 180-70.200 chf. 2'500.– + VAT

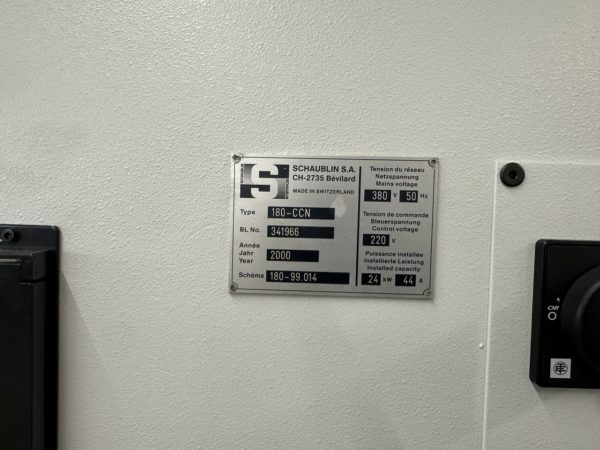

Manufacturing origin Swiss
Voltage 380/50/3
TECHNICAL DATA
Capacities :
Maximum turning diameter 330 mm
Maximum swing over carriage 160 mm
Height of centres over carriage 83 mm
Maximum swing over bed 430 mm
Turning length between centres (according to equipment) 650 mm
Headstock :
Standardized spindle nose, for use of several collets and jaw-chucks by means of adapter sleeves
Accessories for SCHAUBLIN collets B45/F48
Maximum throughbore, dia. 36 mm/42 mm
Diameter of standard chck 170 mm
Direct AC motor drive, power at 100%/50% duty factor 15/18,5 kW
Max. torque at 100%/50% duty factor 135/165 Nm
Spindle speeds, stepless 5000 min-1
C Axis :
Pneumatic closing Cylinder, maximum 5 bar, maximum clamping force 2700 daN
Apron and carriage :
Transverse stroke (X-axis) 240 mm
Rsolution, on radius 0,0005 mm
AC motor drive, torque 3 Nm
Ball screw, dia. x pitch 32 x 5 mm
Longitudinal stroke (Z-axis) 720 mm
Resolution 0,001 mm
AC motor drive, torque 6 Nm
Ball screw, dia. x pitch 32 x 10 mm
Feeds :
Working feeds, X-/Z-axis, stepless 0-5000 mm/min
Rapid feed, X-/Z-axis 8/10 m/min
Feed pressure, X-/Z-axis 420/670 daN
Tooling system Turret :
Number of tool stations 8
Standardized fixing of toolholders VDI 30
Maximum tool size 20 x 20 mm
Integrated cooling
Indexing in both senses of rotation
Coolant supply :
Capacity of coolant tank 120 litres
Pump power 10 l/min
Pressure 5 bars
errors and omissions excepted data gived without obligation
