Origine de fabrication : CH
Voltage : 3x400V / 60Hz ; 50 A ; 35 kVA
Dimensions : 270x200x260 cm
Poids net machine : 2500 kg
CARACTERISTIQUES TECHNIQUES

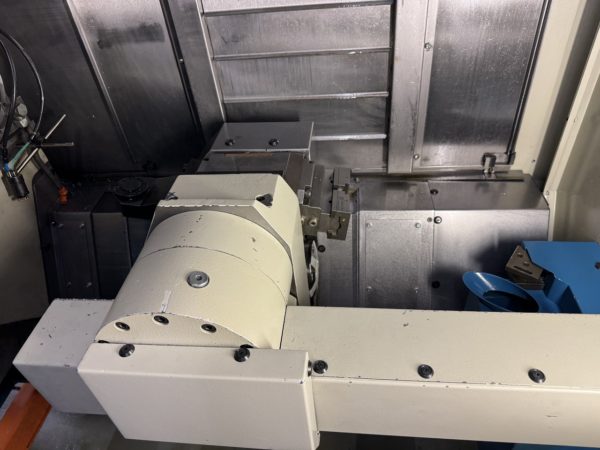

WILLEMIN MACODEL : 508 MT
Commande : Fanuc 31i A5
Axe X : 450 mm
Axe Y : 200 mm
Axe Z : 425 mm
Axe B : -45° à +100°
Axe U : 300 mm
Magasin d’outils : 48 postes PickUp
Broche principale A : max Ø42 mm, max 6’000 min-1
Broche principale C : max Ø42 mm, max 3’000 min-1

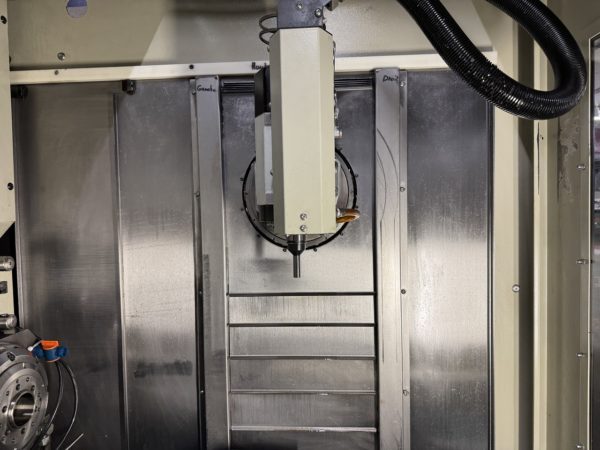

Broche motorisée fraisage : HSK40E, MAX 30’000 min-1
Sauf erreur ou omission, les indications techniques vous sont données sans engagement
Inventaire no.2230001, machine comprenant :
Commande Fanuc 31i A5
Broche motorisée fraisage HSK40E, MAX 30’000 min-1
Palpeur Renishaw NC4
Surveillance casse outil – Renishaw NC4
Surveillance pièces – Detector 101
Broche principale A – max Ø42 mm, max 6’000 min-1
Broche principale C – max Ø42 mm, max 3’000 min-1
Etau – Spreitzer serrage centrique HZS 70-36 A WM – 400
Contre-poupée
Appareil refroidissement broche – ARO version 1.1
Ravitailleur – LNS Super Hydrobar HS
Magasin d’outils – 48 postes PickUp
Outils tournants – Denitool Modulo D
Convoyeur de copeaux – NB 300 Fames – bande à plaques
Signalisation lumineuse – Werma
Extinction feu – CO2 Kraft & Bauer
