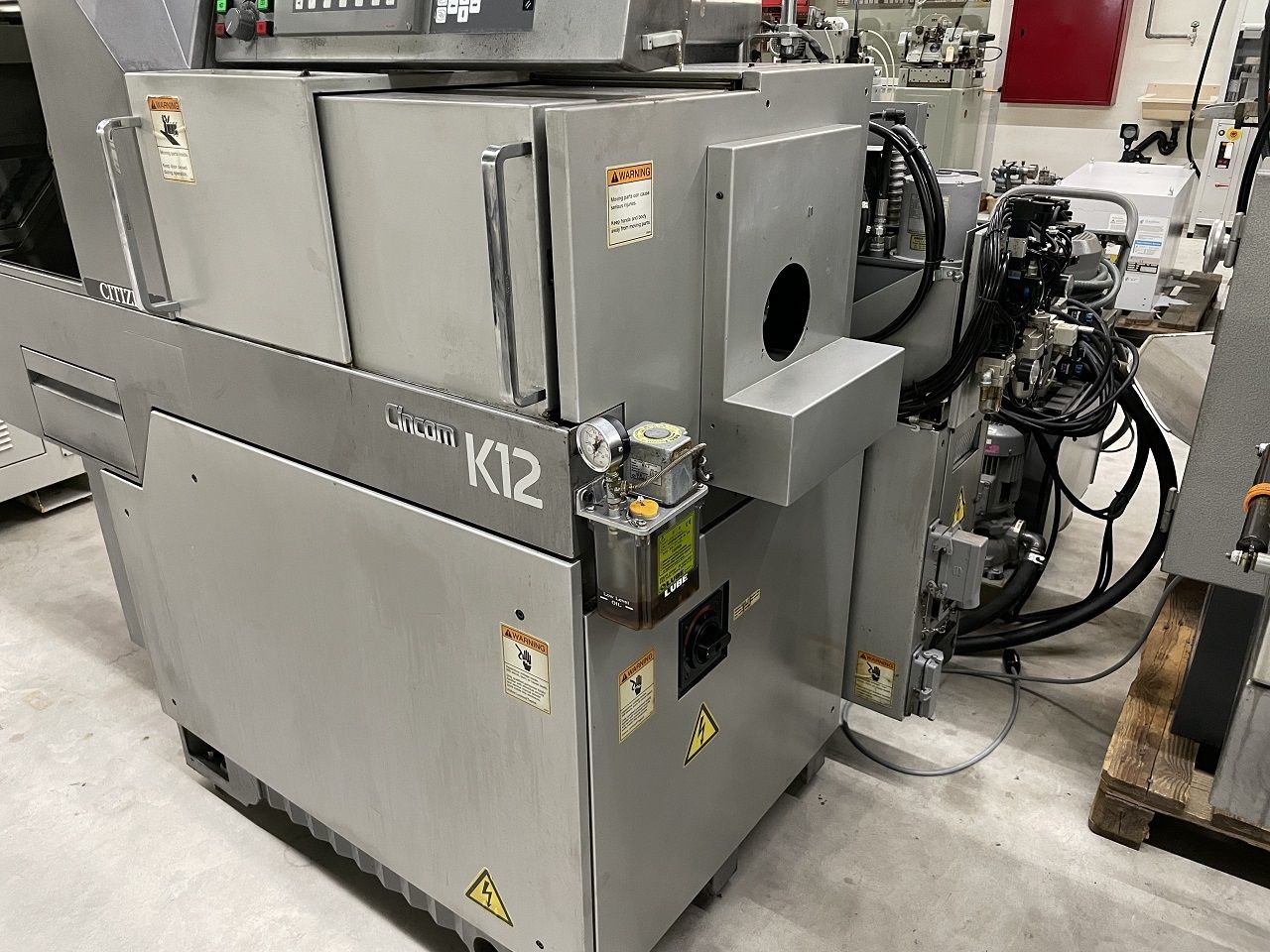

CNC LATHE CITIZEN TYPE CINCOM K12 VII P

Manufacturing origin : JP
Voltage : 400V 7kVA
Netweight : 2200 kg
Custom position : 8458.9120

TECHNICAL DATA

K12 type VII

Center height : 1050 mm

Max turning diameter : Ø 12 mm
Max turning length : 200 mm
: chuck (motor RGB)
: 80 mm / chuck Kere type RGB
Max drilling diameter for main spindle : Ø 10 mm
Max tapping diameter for main spindle : M8
Main spindle through-hole diameter : Ø 16 mm
Spindle speed : max 15’000 min-1 (motor type RGB)
: Max 8’000 min-1 (Kere type RGB)
Max drilling diameter for rotary tool : Ø 5 mm
Max tapping diameter for rotary tool : M4
Spindle speed of the gang rotary tool : max 6’000 min-1

Max chuck diameter of back spindle : Ø 12 mm
Max drilling diameter in back machining process : Ø 6 mm
Max tapping diameter in back machining process : M5
Back spindle speed : max 10’000 min-1

Number of tools to be mounted : max 18
Tool size : square 12 mm

Travel X1 : 122 mm
Travel X2 : 122 mm
Travel axe Y1 : 200 mm
Travel Z1 : 278,5 mm
Travel Z2 : 150 mm

X1-axis rapid fee rate : 34m/min (single24m/min)
X2-axis rapid fee rate : 32m/min
Y-axis rapid fee rate : 34m/min (single 24m/min)
Z1-axis rapid fee rate : 32m/min
Z2-axis rapid fee rate : 32m/min

Motors
Spindle drive : 2.2/3.7 kW
Tool spindle drive : 0.4 kW
Back spindle drive : 0.4/0.75 kW
coolant : 0.25 kW

Power capacity : 8 kVA

errors and omissions excepted-data given without obligation

Inventory no.2230030 Machine comprising :

Fanuc 31i control
7 axes (X1/Y1/Z1/C1/X2/C2)
Bar Ø max 12 mm
Turning length max 200 mm
Main spindle speed max 15’000 min-1
C-axis rotating tools max 6’000 min-1

Tool stations total 17 pcs

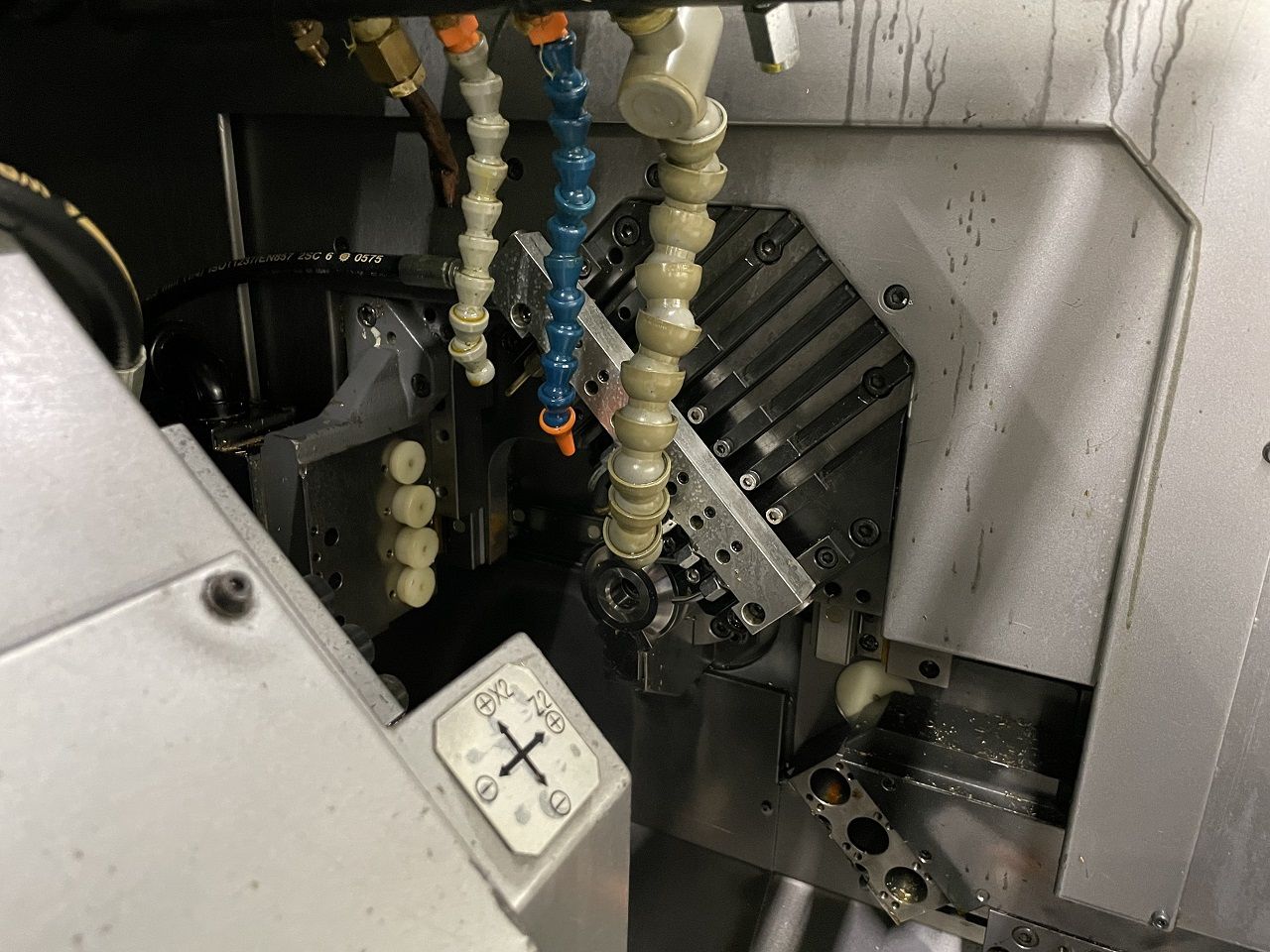

Linear tool holders
front-end device
counter operation
4 driven tool holders
Various tool holders, quills, etc.
Standard barrel unit
Workpiece conveyor belt
High pressure unit 65 bar
LNS Tryton 112 CNC

Errors or omissions excepted, these data are provided without obligation.
